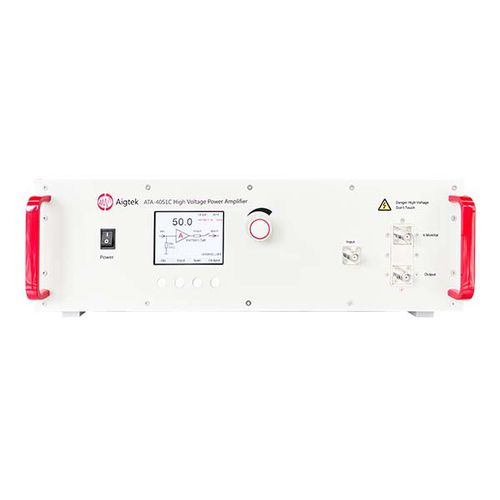

Power amplifier ATA-4051

signalvoltagehigh-voltage

ATA-4051 is an ideal single-channel high voltage power amplifier that can amplify the AC and DC signals. matching with the mainstream signal generator, realize perfect signal amplification. Input The input is BNC interface, the input resistance is 50Ω and 5kΩ, perfect matching with the high/low internal resistance signal source. Output The output is banana binding post. LCD Displays ATA-4051 is provided with LCD to display the equipment state and parameters dynamically, the operation interface is clear at a glance, concise and easy to understand. Voltage gain The voltage gain of ATA-4051 power amplifier is variable (x0-100, 0.1step),gain displayed on LCD, be adjusted to the required voltage quickly. Monitor 1/100 Monitor: The port voltage is 1/100 of output port, the monitoring port is BNC connector that can be connected with the oscilloscope for monitoring the output voltage in real time.
