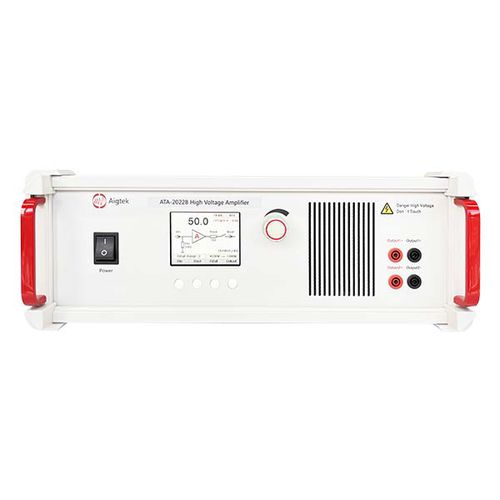

High-voltage amplifier ATA-2022B

signalvoltageinstrumentation

The ATA-2022B is a dual-channel high-voltage amplifier capable of amplifying both AC and DC signals. The maximum output voltage is 200 Vp-p, with the output voltage range adjustable according to the output rail. The DC bias voltage can be adjusted in three levels, with continuous variation allowing a maximum output of ±160V, enabling the generation of asymmetric signals to drive high-voltage loads. The input and output impedance can be switched between two levels. The voltage gain is digitally adjustable, with parameters automatically saved. The device features program control functionality, offering simple and convenient operation. It can be used with signal generators for seamless signal amplification. The wide-range power supply accommodates different regional power standards worldwide. LCD Display The ATA-2022B features an LCD screen for dynamic display of device status and parameters. Prompts in different colors make human - machine interaction more efficient, and the operation interface is clear at a glance, simple and easy to understand. Voltage Gain The voltage gain is digitally adjustable from x0 to x60, with two modes: coarse adjustment (1 step) and fine adjustment (0.1 step). Combined with the LCD panel display, it enables quick and precise adjustment to the desired voltage value. MONITORING PORTS 20mV/V Monitor: The monitoring port voltage is 1/50 of the output port voltage. The monitoring port uses a BNC connector, allowing direct connection to an oscilloscope for real-time monitoring of the output voltage. 2V/A Monitor: The monitoring port voltage is 2 times the output current.
