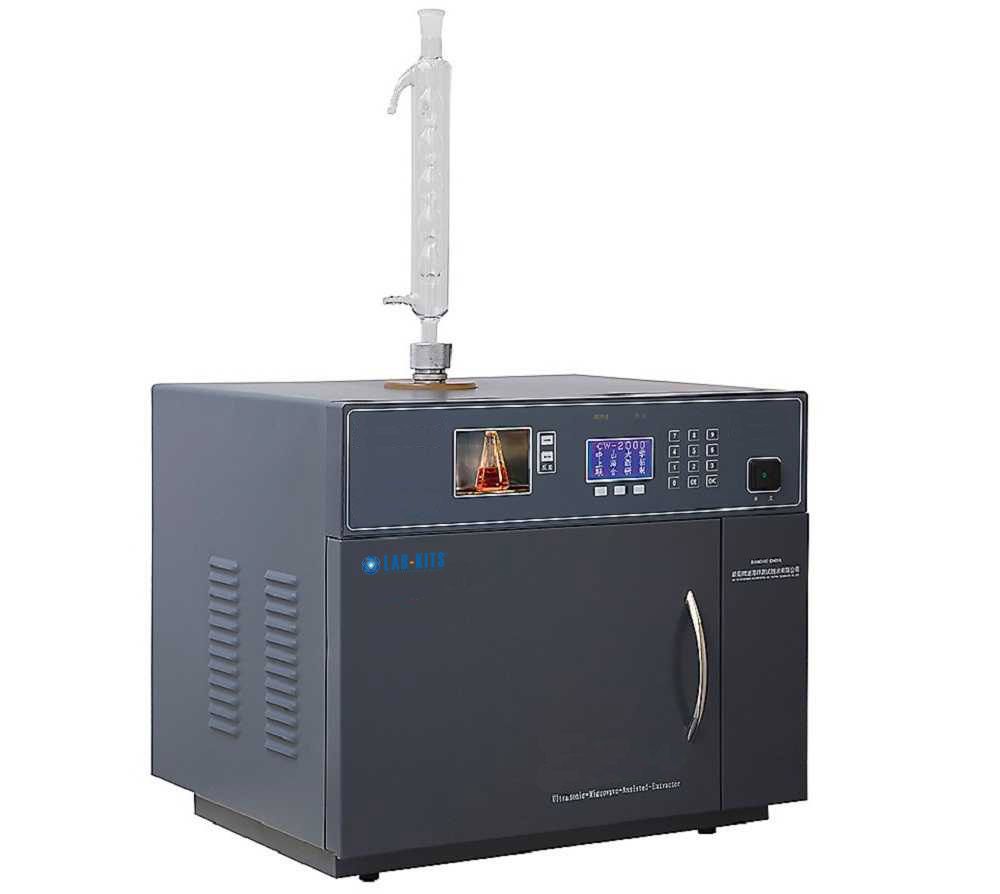

Microwave oven for sample digestion
MW-ER-01
U-Therm International (H.K.) Limited
Parameter
• A multiuse instrument: 3 different modes of action include direct ultrasonic, opening microwave and cooperative mode
• Microwave power: 10-800W (adjustable); microwave frequency: 2450MHz
• Ultrasonic power/ frequency: 50W/ 40KHz
• Microwave action mode: nonburst continuous microwave heating
• Ultrasonic action mode: small power ultrasonic transducer directly connect to reactor, low noise, acoustic vibration (energy) efficiency close to 100%
• Microwave power control mode: time control, temperature control and constant power control
• Temperature control: non-contact infrared temperature measurement, in the range of room temperature to 120℃(±1℃).
• Reactor monitor: real-time video monitor sample reaction state by 4" LCD
• Reactor volume: 100mL, 250mL, 500mL (reactor of special specification can be made according to user's needs)
• Power source: 220V±10%, 50Hz
• Input power: 1360W
• Furnace chamber volume: 27 L
• Exterior size: 430mm*512mm*510mm
Capability Feature
• A multiuse instrument: three action modes including ultrasonic, microwave and cooperative mode are provided in a real multi-use instrument; best choice for the methods and mechanism research of chemical reaction, chemical synthesis, material preparation, chemical sample pretreatment, etc.
• Efficient ultrasonic oscillations: ultrasonic oscillations energy directly act on sample reactor, high acoustic vibration efficiency, low energy consumption, low noise; design of acoustic vibration and wireless, more convenient to put in and take out sample reactor.
• Unique patent technology: 3 patent technology is used for the instrument (ZL 2004 2 0114391.1; ZL 2004 2 0014392.6; ZL 2004 0114393.0)
