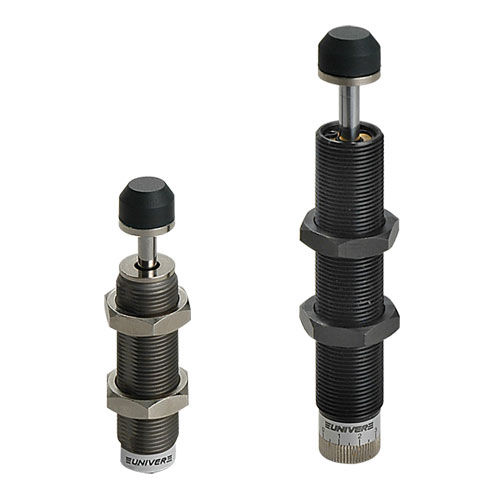

Shock absorber YDA-YDR

vibrationhydraulicself-compensating

YDA-YDR Shock absorbers YDA series self-compensating and YDR series progressive adjustable shock absorbers are used to provide a linear deceleration and to let the impacting object stop smoothly. Lock nuts 2 pieces and impact cap is standard equipment (upon request without cap) Advantages: -Producion rate increase -Machine life extension -Reduction of vibration and noise levels -Reduction of maintenance cost TECHNICAL CHARACTERISTICS Ambient temperature-10-80°C Stroke6-7-10-12-15-25-40-50 mm Energy absorption per cycle3 - 300 Nm Energy absorption per Hour7000 - 100000 Nm Effective mass6-1400 Kg Impact speed0,3 - 5 m/s CONSTRUCTIVE CHARACTERISTICS Bodysteel Piston rodcarbon steel chrome plated Pistoncarbon steel Sealingsnitrilic rubber
