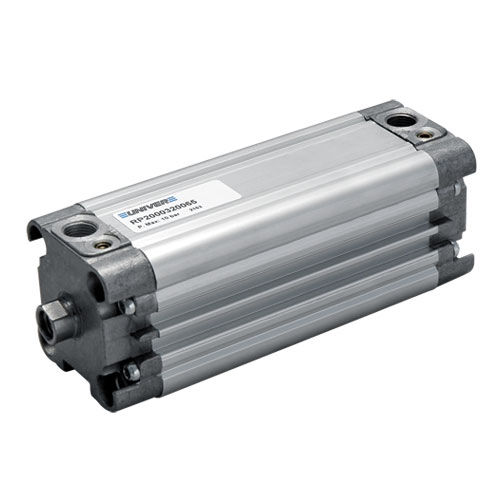

pneumatic cylinder / double-acting / with piston rod / compact
RP, RM series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
pneumatic cylinder / double-acting / with piston rod / compact pneumatic cylinder / double-acting / with piston rod / compact - RP, RM series
{{requestButtons}}

Characteristics

  • Type:

    pneumatic

  • Technology:

    double-acting, with piston rod

  • Other characteristics:

    compact, standard, tandem

  • Stroke :

    Min.: 5 mm (0.197 in)

    Max.: 500 mm (19.685 in)

  • Force:

    Min.: 11.8 N

    Max.: 90 N

  • Torque:

    Min.: 0.5 Nm (0.37 ft.lb)

    Max.: 8 Nm (5.9 ft.lb)

Description

Cylinders 16-63 mm with compact overall dimensions in accordance with UNITOP recommendations (RP/ RO series) and with ISO inter-axes (RM/RN series) are available also in non-rotating version and with extended piston. This product, the first one realized with adjustable pneumatic cushioning without changement of dimensions in comparison with an equivalent cylinder without cushioning, allows a considerably higher speed and reduces noise level.
TECHNICAL CHARACTERISTICS
Working pressure: 1,5 - 10 bar Ambient température: -20 - +80°C Fluid: lubricated or non lubricated air Barrel: extruded aluminium alloy with piston rod in chromium-plated Steel or stainless Steel Magnetic version
The octagonal version with female piston rod is standard supplied with assembled flange Max. speed: 1 m/s
Upon request
-Hollow piston rod only for through piston rod versions.
-Magnetic sensor DF-series (section accessories page 2)
-Wire protection strap for magnetic sensor. partn. DHF-002100.
Construction details
•Barrel in extruded aluminium alloy, externally and internally anodized 15pm, plain profile, forflush-mounted sensors
•Die-cast end-caps in zamac
(0 1625 mm); in aluminium alloy
(0 32 -r 63 mm)
•Self-tapping screws in zinc-plated Steel
•Chromium-plated Steel rod
•Stainless Steel rod
•Piston in aluminium
•Acetal resin slide
•Piston seals in nitrile rubber
•Rod seals in polyuréthane
•Piston in aluminium D.A.
