Standard actuators
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}

Stroke : 50 mm
Force: 754 N
Integrated valve and actuator (IVAC), cleanline profile, 32mm diameter, 50mm stroke, 5/2 Sol/Sol ITEM: PRA/882032/MIB/M4/50 •Cleanline Profile barrel with integrated switches •Glandless spool valve for extended life ...

Force: 0 N - 6,000 N
LINAK® LA18 IC is a set of actuators - one primary w. built-in control box and one (or more) secondary actuators- designed for movement of adjustable comfort beds. The system is compact and can come ...

Stroke : 0 mm - 6,000 mm
Speed: 0 m/s - 5 m/s
Clean Room System Belt driven linear actuators for Clean Rooms Product Description The CLEAN ROOM SYSTEM units are linear actuators with belt driven transmission and are specifically designed for ...

Speed: 126 m/s
Torque: 0 Nm - 7,512 Nm

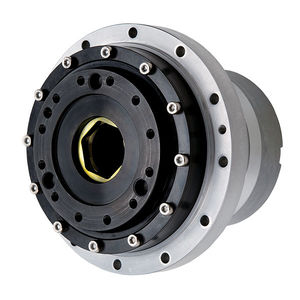

... individual teeth increases the torque density of this compact actuator several times over. The system features the gearbox and an axially or radially integrated synchronous motor with a standard encoder ...

Stroke : 0.011 in - 18 in
The Original Line Electric® Thruster is a rugged, guided actuator with an OLE cylinder integral to the thruster block. With many types and options to choose from, it offers many variations that allow selection of the ...

Stroke : 915 mm
Speed: 32 mm/s
Electrak PPA-DC Linear Actuators Electrak® PPA-DC Performance Pak Actuators are strong, heavy duty units able to run at higher duty cycles. Incorporating a highly efficient ball screw drive system, ...

Stroke : 915 mm
Speed: 16 mm/s
Electrak PPA-AC Linear Actuators Electrak® PPA-AC Performance Pak Actuators are strong, heavy duty units that can run at higher duty cycles. Incorporating a highly efficient ball screw drive system, ...

Stroke : 40 mm - 990 mm
Force: 4,712 N - 48,255 N
Linear actuator with integrated positioner. The sturdy and compact housing is easy to install due to many available accessories. Ideal for exterior use thanks to high corrosion resistance. - double-acting - Product ...

Torque: 10 Nm - 480 Nm
- Torque 10 ... 2300 Nm - Swivel angle 0 ... 90°, 0 ... 180° - Flange hole pattern to ISO 5211 - NAMUR connection pattern for solenoid valves/sensor boxes to VDI/VDE 3845 - Epoxy coating - for butterfly valves and ball valves

Torque: 7 Nm - 8,000 Nm
... turn actuators for automation of ball valves, butterfly valves and dampers - Torque 7 ... 8000 Nm - Swivel angle 0 ... 90° - Flange hole pattern to ISO 5211 - Namur port pattern for solenoid valves / sensor boxes ...

Torque: 4.5 Nm - 120 Nm

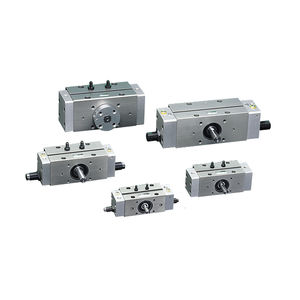

Rack-type rotary actuators in various configurations: • Configuration with standard magnet • Version with male pinion or female hole • Mechanical stroke adjustment • Special configurations on request The ...

Stroke : 10 mm - 1,200 mm
Force: 7,500 N - 122,000 N
Speed: 0.3 m/s
... rotary-linear-actuator is a combination of a rotary actuator and a dual-action linear cylinder. Consequently, with the HSE4, a rotary movement and and a linear movement can be executed in an extremely ...

Force: 3,800, 15,900, 2,000, 25,000 N
Speed: 3 m/s
Torque: 477, 1,000, 20, 76 Nm
... Gear Rack Drive designed for especially extensive lifts and long travel distances. characteristics It’s so easy: The standard development of our lifgo® Gear Rack Drive can simply be converted into a lifgo® linear ...

... clasping and primary systems with extended travel. characteristics There is more to this Gear Rack Drive: As with all standard lifgo® drives, the lifgo® double can easily be converted into a lifgo® linear double. ...

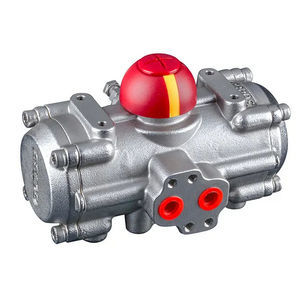

Double Acting Pneumatic Actuator Wear proof aluminum free Rack & Pinion design.

Single Acting Pneumatic Actuator Wear proof aluminum free Rack & Pinion design.

Stroke : 50 mm - 1,000 mm
Force: 1,800, 1,200, 600 N
Speed: 5, 7, 12 m/s
【Technical Feature】 The FTG50 electric actuator developed by Fuyu Technology is a linear motion product with comprehensive transmission functions of push-pull and lift. The length can be customized according ...
Chengdu Fuyu Technology Co., Ltd

Stroke : 100 mm - 1,500 mm
Force: 674 N - 1,123 N
Speed: 55 mm/s - 300 mm/s
Waterproof Sealing Linear Guide is particularly good for robot industry equipment such as the photovoltaic equipment, loading and unloading robots, cutting equipment, coating equipment, patch equipment, etc. FUYU offers a wide range ...
Chengdu Fuyu Technology Co., Ltd

Stroke : 100 mm - 1,500 mm
Force: 20 kgf - 60 kgf
Speed: 55 mm/s - 300 mm/s
【Technical Feature】 FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small ...
Chengdu Fuyu Technology Co., Ltd

Stroke : 10 mm - 500 mm
Force: 23 N - 295 N

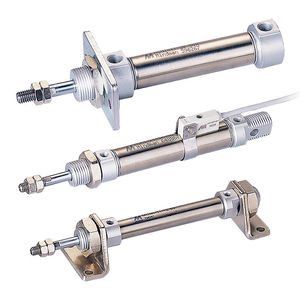

Mini Cylinders with Bush ø 8-25 ISO6432 Covers: Anodized Aluminium Tube: Stainless Steel 304 Piston: Brass Seals: NBR/PU Piston Rod: Stainless Steel 303 Guiding Bush: Sintered Bronze Rear Bush: Polymeric Fluid: ...
Cy.Pag. S.p.A.

Stroke : 10 mm - 500 mm
Force: 482 N - 7,359 N
... ISO15552 Covers: Painted die-cast aluminum Tube: Anodised aluminum Seals: Polyurethane - NBR Guide bush: Sintered bronze Piston rod: Chromium coated steel Tie rods: ø32-100 stainless steel AISI303 / ø125 chromium ...
Cy.Pag. S.p.A.

Stroke : 0 mm - 1,000 mm
Force: 482 N - 1,869 N
... accessories. Special versions are available. On request complaint with ATEX directive. The ISO15552 cylinders are pneumatic actuators designed with die-casted/anodysed aluminum construction. These are built with seals ...
Cy.Pag. S.p.A.

Stroke : 50 mm - 750 mm
Force: 120 N - 2,200 N
Speed: 3 mm/s - 33 mm/s
... and most versatile actuator is also our bestseller. It's size, efficiency and elegant design make this electric in-line actuator the perfect match for almost any minor lifting task This small and ...

Stroke : 50 mm - 750 mm
Force: 500 N - 4,500 N
Speed: 4 mm/s - 70 mm/s
... industrial applications that call for a versatile and highly efficient actuator Our con50 is ideal where size is limited by design or functionality. This IP66-rated electric in-line actuator is made ...

Stroke : 50 mm - 750 mm
Force: 1,900 N - 10,000 N
Speed: 5 mm/s - 26 mm/s
... This IP66-rated electric in-line actuator is made of powder-coated steel with an aluminium or stainless-steel piston, providing a sturdy design that protects the motor and electrics. con60 comes with various standard ...

Stroke : 290 mm - 995 mm
Force: 900 N - 5,000 N
Speed: 210 m/s - 2,100 m/s

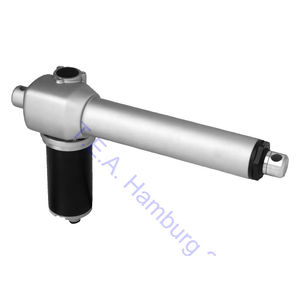

... wormgear ■acme screw or bail screw ■chrome plated Steel push rod ■lifetime grease lubrication ■IP 55 for AC standard (IP 65 on demand) ■IP 65 for DC standard ■temperature-10°C bis+60°C ■duty cycle S3 ...

Stroke : 500 mm - 1,000 mm
Force: 2,100 N - 10,000 N
Speed: 120 m/s - 6,000 m/s
... wormgear ■acme screw or ballscrew ■chrome plated Steel push rod ■life time grease lubrication ■IP 55 for AC standard (IP 65 on demand) ■IP 65 for DC standard ■temperature-10 to + 60° C ■duty cycle S3 ...

Stroke : 100 mm - 400 mm
Force: 0 N - 3,000 N
Speed: 9 mm/s
... 24V DC permanent magnet motor 2. Thrust up to 3000 N in push and up to 2000 N in pull 3. Color: grey or black 4. Standard protection class: IP54 5. Compact design and small size 6. Stainless steel pipe ...

Stroke : 100 mm - 400 mm
Force: 0 N - 6,000 N
Speed: 12, 8, 4, 3 mm/s
... 24V DC permanent magnet motor 2. Thrust up to 6000 N in push and up to 4000 N in pull 3. Color: grey or black 4. Standard protection class: Ip54 5. Stainless steel pipe with inner tube 6. The average noise ...

Stroke : 100 mm - 400 mm
Force: 500 N - 4,000 N
Speed: 4, 9, 22 mm/s
... motor 2. Thrust up to 4000 N in push and up to 3000 N in pull 3. Color: grey or black 4. Standard protection class: IP20 5. Truck type actuator, nut can slide on aluminium-Alloy 6. The ...

Force: 10 N - 700 N
Speed: 4.2 mm/s - 90 mm/s
DAMJ line with spindle pitch 10mm Direct current electric actuator with trapezoidal spindle pitch 10mm. The 10 mm thread makes it easily reversible. The motor is parallel to the axle. Actuator body in ...

Stroke : 50 mm - 800 mm
Force: 7,000, 5,000, 4,000, 3,000, 2,000 N
Speed: 5 mm/s - 35 mm/s
HTW10A industrial linear actuator is a very powerful actuator designed for various applications such as agricultural machinery, construction machinery, and industrial machinery. Configure the standard ...

Stroke : 1 in
Force: 3.37 N
Del-Tron presents Posi-Drive™ lead screw actuators. They are cost effective and compact and take the work out of engineering linear motion systems. The lead screw actuators come in 3 size profiles. They ...

Torque: 20 Nm
... Customer-specific designs on request DESCRIPTION The electromotive rotary actuator of type 1210 can be used as a 2/2 or 3/2 way and as a control drive. The connection between the drive and the actuator ...

Torque: 9 Nm
Electromotive Rotary Actuators - OPEN / CLOSE or Controlled operation DESCRIPTION The electromotive rotary actuator can be used as a two or threeway or as a control drive. The connection between drive ...

Stroke : 20 mm - 35 mm
Force: 2,700 N - 13,900 N
Pneumatic Diaphragm Actuator (with central connection) Pneumatic diaphragm actuator with central connection. This actuator differs from the standard actuator ...

Stroke : 75 mm - 100 mm
Force: 2 kN - 25 kN
Speed: 13.5 mm/min - 50 mm/min

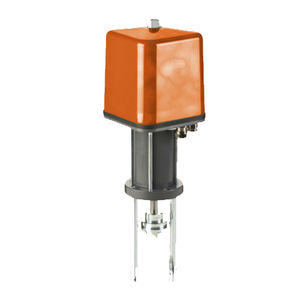

Electric Actuator (linear) The E2000H is an electric linear actuator for modulating and open-close duty of control and process technology to operate control valves. The actuator is ...

Stroke : 35 mm - 46 mm
Force: 0.9 kN - 5.3 kN
Speed: 4.1 mm/min - 17.5 mm/min
... . In modulation duty, the end position seating is made via limit switches. The actuator is produced by our partner Haselhofer Feinmechanik. Features: Standard actuator with Fail ...

Stroke : 40 mm
Force: 200 N
Speed: 200, 50 mm/s
Closed Loop Linear Actuators with Absolute Sensor Features High-precision micro movements Absolute sensor Space-saving installation The DRS2 Series uses the AZ Series equipped with the Absolute ...

Stroke : 0 mm
Force: 500 N - 4,000 N
Torque: 4.5 Nm - 50 Nm
DG2-AZ Series Hollow rotary actuators with absolute sensor with/without integrated controller Frame size: 85-200 mm Permissible torque: 4.5-50 Nm Max. speed: 110-200 r/min Permissible thrust load: 50-4000 N Repetitive ...

Force: 0 N - 3,500 N
Speed: 0 m/s - 6 m/s
... to make rheir own arrangements for the drive may purchase any Hepco DLS with a drive shaft. In addition to the 2 sizes of standard axes, Hepco has added a new cantilever axis. This is ideally suited to applications where ...
HepcoMotion

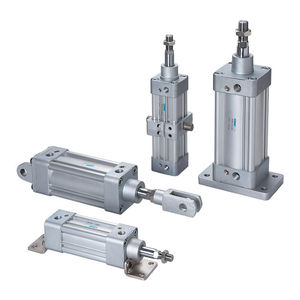

Tube I.D. φ 32, 40, 50, 63, 80, 100 (mm). Conformance to ISO-6431 & VDMA-24562 specification. Unified design, most parts of each type are interchangeable among each other.
Mindman Industrial
