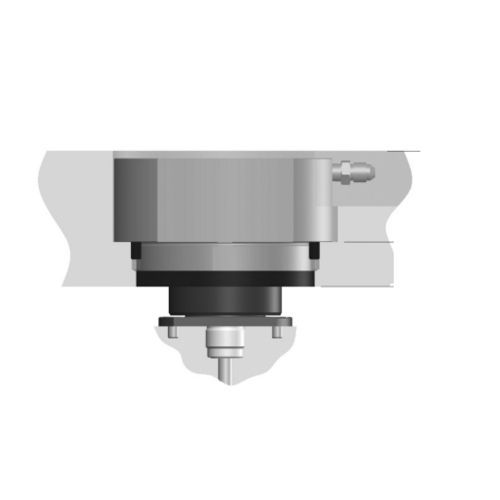

Hydraulic actuator QCVG16linearpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Movement
- linear
- Technology
- piston
- Configuration
- double-acting
- Applications
- clamping
- Other characteristics
- standard, with integrated limit switch, with integrated position sensor
- Stroke
16 mm
(0.63 in)- Pressure
Max.: 42 bar
(609.16 psi)Min.: 35 bar
(507.63 psi)- Rod diameter
Max.: 8 mm
(0 in)Min.: 5 mm
(0 in)- Force
6.67 kN
Description
Hydraulic actuator for manifold systems mounted in the clamping plate. The actuator is cooled by the cooling system in the plate, and features a mechanism that automatically bleeds air out of the hydraulic lines when the piston is in the fully retracted position.
Valve pin operation
Operation medium hydraulic
Pressure range 35 - 42 bar
(500 - 600 psi)
Operating pressure
max.
103 bar (1500 psi)
Flow rate 1.8 l/min
Valve pin stroke 16 mm
Adjustment ± 1 mm
via adjustment nut
from top
Closing force 6670 N / 100 bar
(1450 psi)
Opening force 6670 N / 100 bar
(1450 psi)
Connections Ø 1/8 NPT
Cooling
Medium
Clamping plate cooling
max. 100 °C (210 °F).
Cooling lines are required in clamping plate.
Valve pin
Valve pin diameter Ø 5 mm, Ø 6 mm,
Ø 8 mm
Attachment Quick coupling, antirotation
Available versions
QCVG16M04 Standard Offering
(Cutout shown on the
right hand side)
QCVG16M06 Position sensor
Option for hGate®
applications.
QCVG16M07 Limit Switch Option
