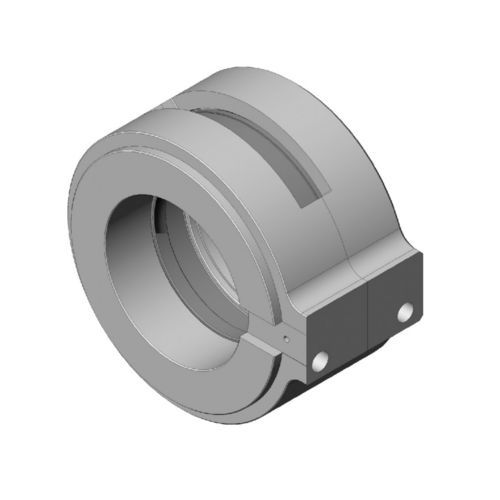

Pneumatic actuator GBNS

lineardouble-actingfor gate valves

Pneumatic actuator for single valve gate nozzles; Inherent part of the nozzle which will always be delivered including the complete nozzle. Valve pin operation Operation medium pneumatic Reaction time ~1.4 s Valve pin stroke 14 mm Adjustment ±1.5 mm via adjustment threads from outside Connections M12x1.5 a) Close b) Open Cooling Without being directly cooled the nozzle can be used up to a mold temperature of the associated cooling unit has to be used. Valve pin Valve pin diameter Ø 8 mm Attachment anti-rotatio
