Pneumatic actuator VP4008P

linearpiston

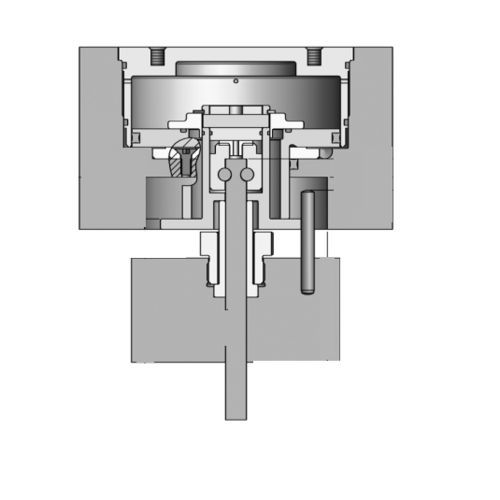

Pneumatic actuator for manifold systems mounted in the back plate. The actuator is cooled by the cooling system in the plate. Valve pin Operation Operation medium pneumatic Pressure range 6 - 10 bar (87 - 145 psi) Operation pressure max. 11 bar (160 psi) Flow rate 10 l/min Valve pin stroke 16 mm Adjustment By adjusting a height adjustment piece Closing force 3016 N / 6 bar (87 psi) Opening force 2788 N / 6 bar (87 psi) Connections M12x1.5 Valve pin Valve pin diameter Ø 5 mm, Ø 6 mm, Ø 8 mm Attachment Valve pin head inside piston Cooling Medium Clamping plate cooling max. 100 °C (210 °F). Cooling lines are required in clamping plate. Different Informations Minimum clamping plate thickness 50 mm Minimum distance between two actuators 97 mm Max. distance from actuator to center support 650 mm Important Customer must use clean, lubricated air for proper actuation
