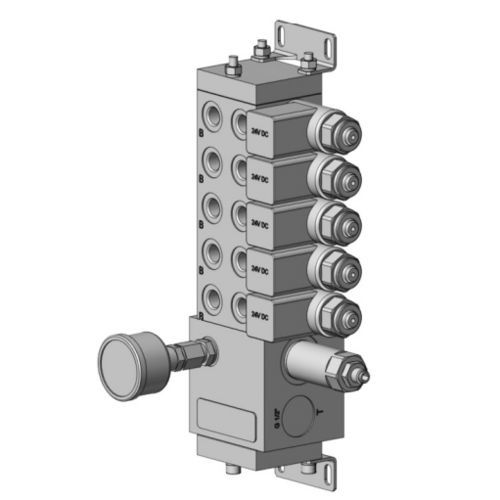

Multi-channel manifold XCMsteelactuatorfor valves
Add to favorites
Compare this product
Characteristics
- Number of channels
- multi-channel
- Material
- steel
- Applications
- for hydraulic applications, for valves, actuator
- Other characteristics
- threaded, valves, nozzle
- Operating pressure
Max.: 250 bar
(3,626 psi)Min.: 40 bar
(580 psi)- Port size
12.7 mm
(0.5 in)
Description
Servo valves to operate the valve pins of valve gate hot runner systems. Servo valves are mounted to a valve block. This valve block and its components can either be mounted to the hot runner system or directly to the tool.
Operating Data
Pressure 40 bar
Max. inlet pressure
250 bar
Connection G 1/2”
Operating voltage 24 VDC
Supported hydraulic Actuators
and Nozzle Series
Actuator series with
needle diameter up
to 3.8 mm for nozzle
series 06E, 09E
Type of reset Air spring
Operating medium
Hydraulic oil HLP
32 DIN 51524-2,
purity level
21/18/13 accor
