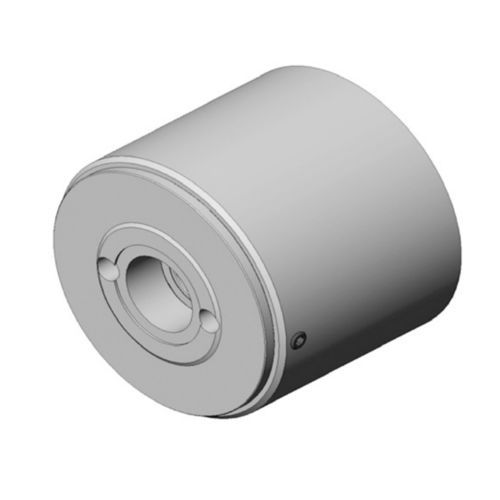

Pneumatic actuator PNC4508B

linearsealed

Actuator for manifold systems, bolted onto the manifold. It is sealed by the back plate based on the thermal expansion of the manifold stack height. Valve pin operation Operation medium pneumatic Flow rate 5 l/min Reaction time ~0.5 s Adjustment ± 1 mm via adjustment threads from topside Cooling The design provides an indirect cooling otherwise cooling lines are required. Connections No piping. Pressure line provided by back plate. Valve pin Valve pin diameter Ø 3 mm, Ø 3.8 mm Attachment T - head
