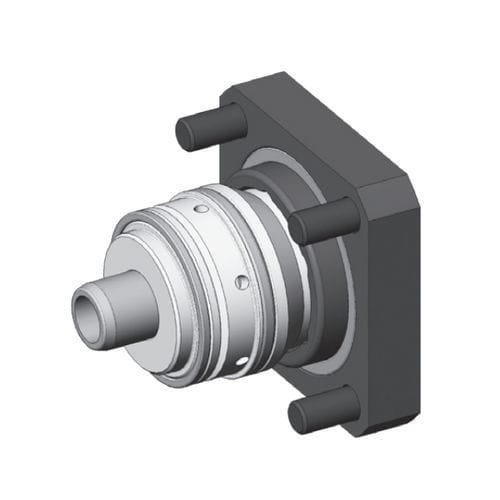

Hydraulic actuator HYZ3908

linearpistondouble-acting

Hydraulic actuator for manifold systems mounted in the clamping plate. The actuator is cooled by the cooling system in the plate. Valve pin operation Operation medium hydraulic Operating pressure max. 40 bar (600 psi) Flow rate 1.5 l/min Reaction time ~0.2 s Valve pin stroke 8 mm Adjustment By height adjusting of washers above and below valve pin head Closing force 1964 N / 40 bar (580 psi) Opening force 1512 N / 40 bar (580 psi) Connections Ø 5 mm Cooling Medium Clamping plate cooling max. 60 °C (140 °F). Cooling lines are required in clamping plate. Valve pin Valve pin diameter Ø 3.8 mm Attachment Valve pin head inside piston.
