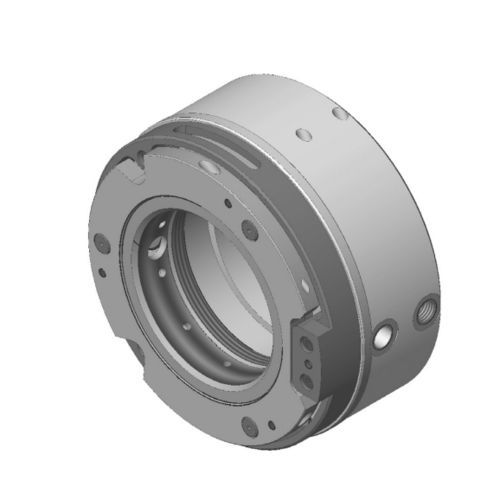

Hydraulic actuator HYC2314Slinearpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Movement
- linear
- Technology
- piston
- Configuration
- double-acting
- Stroke
14 mm
(0.551 in)- Pressure
Max.: 60 bar
(870.23 psi)Min.: 40 bar
(580.15 psi)- Rod diameter
8 mm
(0 in)- Force
Max.: 4.98 kN
Min.: 4.04 kN
Description
Hydraulic actuator for single valve gate nozzles; Inherent part of the nozzle which
will always be delivered including the complete nozzle.
Valve pin operation
Operation medium hydraulic
please consult Synventive
Flow rate 2.5 l/min
Reaction time ~0.5 s
Adjustment ±1 mm
via adjustment threads
from outside
Connections M12x1.5 (8-L)
a) close
b) open
Cooling
Without being directly cooled the nozzle
can be used up to a mold temperature of
80 °C (176 °F). For higher temperatures
the associated cooling unit has to be
used.
Valve pin
Valve pin diameter Ø 8 mm
Attachment anti-rotation
