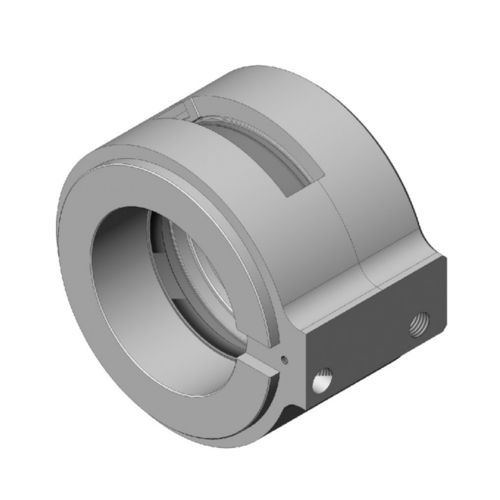

Pneumatic actuator GANS

linear

Pneumatic actuator for single valve gate nozzles; Inherent part of the nozzle which will always be delivered including the complete nozzle. Valve pin operation Operation medium pneumatic Pressure range 5...10 bar Flow rate 5.4 l/min / 5 bar Reaction time ~1.2 s Adjustment ±1.5 mm via adjustment threads from outside Connections M12x1.5 a) close b) open Cooling Without being directly cooled the nozzle can be used up to a mold temperature of 80 °C (176 °F). For higher temperatures the associated cooling unit has to be used. Valve pin Valve pin diameter Ø 6 mm Attachment anti-rotation
