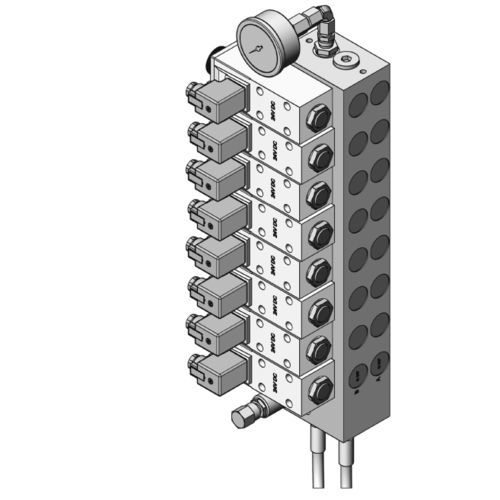

Multi-channel manifold XDM

steelfor actuatorsfor solenoid valves

Servo valves to operate the valve pins of valve gate hot runner systems. Servo valves are mounted to a valve block. This valve block and its components can either be mounted to the hot runner system or directly to the tool. Operating Data Pressure 40 bar (600 psi) max. inlet pressure 250 bar Connection G 1/2” Operating voltage 24 VDC Supported hydraulic Actuators and Nozzle Series Actuator series for all available needle diameter and nozzle series Type of reset Air spring or double solenoid operated Operating medium Hydraulic oil HLP 32 DIN 51524-2, purity level 21/18/13 according ISO 4406
