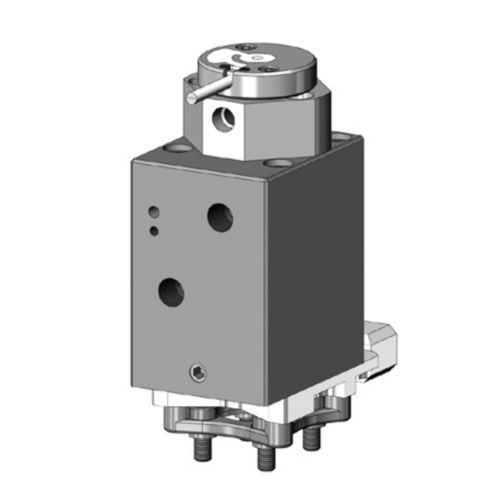

Hydraulic actuator HYC4520M

linearpistondouble-acting

Actuator for manifold systems bolted onto the manifold. A required cooling plate is located between the actuator and the manifold in order to cool the actuator and to thermally separate it from the hot manifold surface. Valve pin operation Operation medium hydraulic Operating pressure 3 l/min HYC4520M05 series 3 l/min Reaction time ~0.5 s Adjustment ±1.5 mm via adjustment threads from outside (1740 psi) Connections M12x1.5 (8-L) a) close b) open Cooling Medium Cooling water Flow rate 6 l/min Connections M12x1.5 (8-L) max. 3 Actuators in a row c) different positions on cooling plate Valve pin Valve pin diameter Ø 6 mm, Ø 8 mm Attachment Quick coupling, anti-rotation Available versions F/-R without position sensor -F = Cooling Full for valve pin guide -R = Cooling Reduced for valve pin guide We recommend to cool the actuator after the end of production for 60 minutes at 30°C to protect it against overheat due to heat flow from the manifold.
