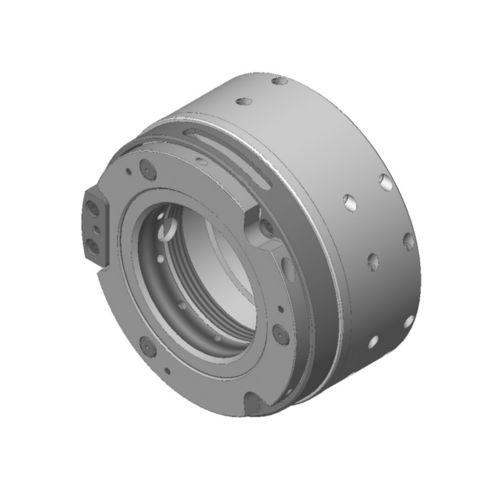

Hydraulic actuator HYC2013S01

lineardouble-actinggate valve

Hydraulic actuator for single valve gate nozzles; Inherent part of the nozzle which will always be delivered including the complete nozzle. Valve pin operation Operation medium hydraulic please consult Synventive Flow rate 2.5 l/min Reaction time ~0.5 s Adjustment ±1 mm via adjustment threads from outside Connections M12x1.5 (8-L) a) close b) open Cooling Without being directly cooled the nozzle can be used up to a mold temperature of 80 °C (176 °F). For higher temperatures the associated cooling unit has to be used. Valve pin Valve pin diameter Ø 6 mm Attachment anti-rotation
