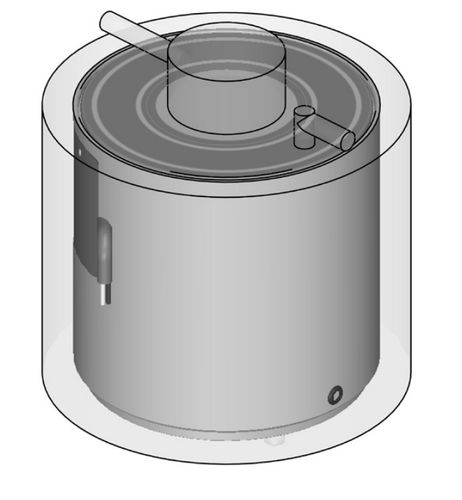

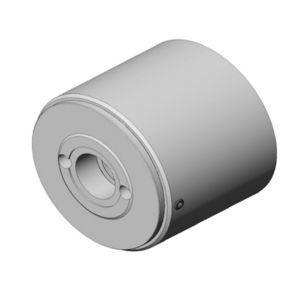

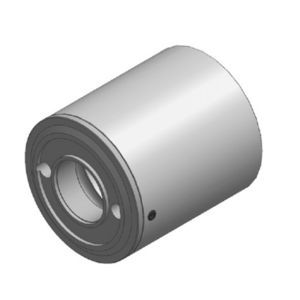

Pneumatic actuator PNC4512B series

lineardouble-actingsealed

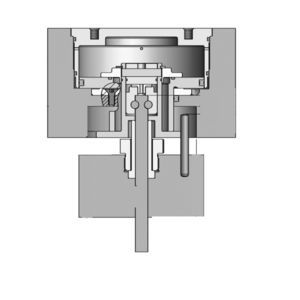

Actuator for manifold systems, bolted onto the manifold. It is sealed by the back plate based on the thermal expansion of the manifold stack height. The Position Sensor detects pin position and sends a signal to activeGate® products providing closed loop position control or pin position indication and speed monitoring with Valve Monitoring Interface (VMI). The limit switch provide the open and close signal of valve pin. Valve pin operation Operation medium pneumatic Flow rate 7 l/min Valve pin stroke 12 mm Adjustment ± 1 mm via adjustment threads from topside
