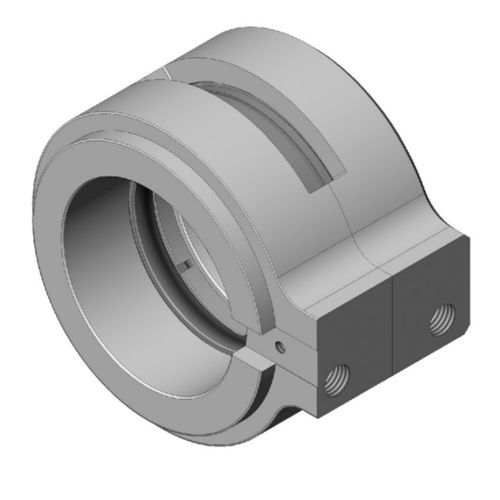

Pneumatic actuator CBNS

Pneumatic actuator for single valve gate nozzles; Inherent part of the nozzle which will always be delivered including the complete nozzle Valve pin operation Operation medium pneumatic Flow rate 1.2 l/min Reaction time ~1.2 s Adjustment ±1.5 mm via adjustment threads from outside psi) Connections M10x1 a) close b) open Cooling Without being directly cooled the nozzle can be used up to a mold temperature of 80 °C (176 °F). For higher temperatures the associated cooling unit has to be used. Valve pin Valve pin diameter Ø 3.8 mm Attachment anti-rotation
