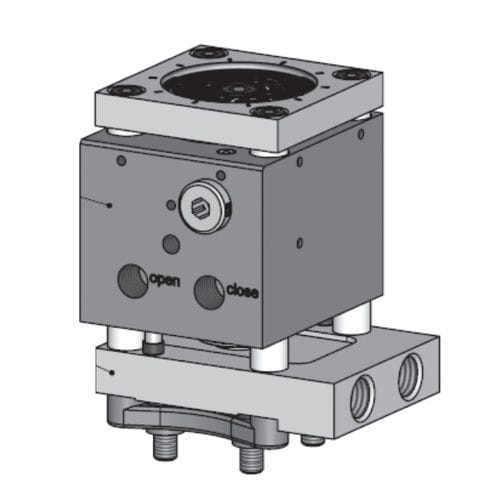

Pneumatic actuator PB series

linearposition-sensingwith sensor option

The actively-cooled PB pneumatic actuator series is bolted onto the manifold. Each Actuator is available with optional ♦ Thermocouple (TC) ♦ and patented Position Sensor (PS) The Position Sensor detects pin position and sends a signal to activeGate® products providing closed loop position control or pin position indication and speed monitoring with Valve Monitoring Interface (VMI). All PB series actuators are provided with the following features: ♦ Easy Valve Pin adjustment through cutout in top clamp plate ♦ Valve Pin quick coupling ♦ Valve Pin anti-rotation feature Cooling the Actuator The cooling plate between the Actuator and the manifold (not shown) provides active cooling of the needle guide and the Actuator to thermally separate it from the hot manifold surface. A maximum of three Actuators can be plumbed in series to create an independent cooling circuit to prevent overheating of the Actuators. Maintaining Actuator cooling after end of production for fifteen minutes will protect against overheating. Cooling Plate (B) can be rotated independently of the Actuator Housing (A). Valve Pin Diameter 3 mm, 3.8 mm 5 mm 5 mm, 6 mm, 8 mm Nozzle Series 06E, 09E 12E 12E, 16E, 22E Pin Adjustment +/- 1 mm +/- 1.5 mm +/- 1.5 mm MIn/Max Close Forces 754/1508N 1696/3393N 3016/6032N Min/Max Open Forces 526/1052N 1468/2937N 2788/5576N Min/Max. Pneumatic Pressure 6/12 bar (87/175psi) 6/12 bar (87/175psi) 6/12 bar (87/175psi)) Valve Pin Stroke 8 mm 16 mm 16 mm Pneumatic Connections M10x1.0 M10x1.0 M10x1.0 Cooling Temperature 30/60 °C 30/60 °C 30/60 °C Cooling Connections M12x1.5 M12x1.5 M12x1.5
