Electric actuator BSMA-058CR
linearstepperball screw

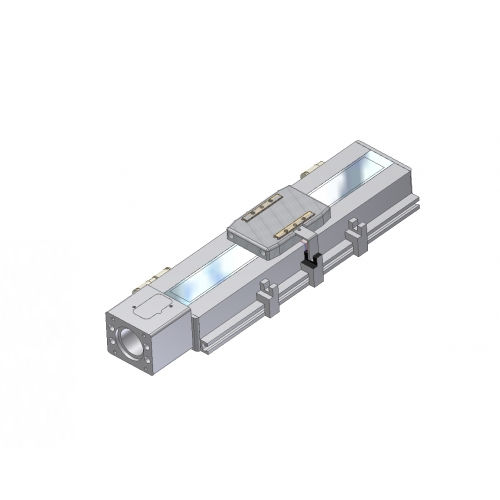

Electric actuator - BSMA-058CR - IntelLiDrives, Inc. - linear / stepper / ball screw
Electric actuator - BSMA-058CR - IntelLiDrives, Inc. - linear / stepper / ball screw
Add to favorites
Compare this product
Go to the IntelLiDrives, Inc. website for more information

Characteristics

Type
electric
Movement
linear
Technology
stepper, ball screw, with servo-motor
Material
stainless steel
Protection class
sealed
Other characteristics
standard, vacuum
Stroke

Max.: 300 mm
(11.811 in)

Min.: 50 mm
(1.969 in)

Speed

25 mm/s, 50 mm/s

Description

Clean Room rating is achieved through a sealed structure and high durability stainless steel strip cover. The actuator body is electro-less plated for corrosion resistance. Actuator has vacuum suctions ports to exhaust any particles generated by the moving parts. These linear actuators confirm to 209E clean room classification and Class 10 VDI 2083-8 standard. Stroke mm: 50 - 300 Ball screw lead mm: 2.5 Motor mounts size :   Nema17, Nema23 Motor type   Stepper: Servo/encoder 1000ppr Repeatability micron: ± 5 Accuracy micron/mm: 20 / 300 Load kg: 20 Speed mm/sec: 25 (stepper) 50 (servo)
