Motorized positioning stages

Stroke : 100 mm - 3,500 mm
Speed: 4,000 mm/s
Repeatability: 0.05 mm

Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification. Wide Variety of Ready-to-Ship Products Quantity ...

Stroke : 50 mm - 1,200 mm
Speed: 60 mm/s - 220 mm/s
Repeatability: 0.02 mm

... Accuracy: 0.02mm Max Speed: 220mm/s Max Load: 40kg Ball Screw: G1610 Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, ...

Stroke : 100 mm - 2,000 mm
Speed: 650 mm/s

... 0.02mm Max Speed: 500mm/s Max Load: 100kg Ball Screw: G1610/G2020 Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, ...

... Motion control in position by Ethernet protocol •Configurable motion speed and acceleration •Accurate and vibration-free positioning enables optimal reading •Optional vibration of micro plates in reading position to ...

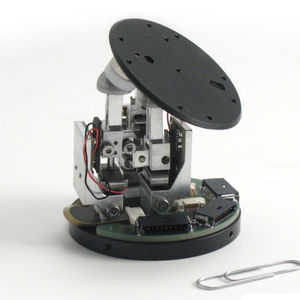

... compact goniometer stage CGO-77.5 can be directly mounted on top of CLS-52 linear stages or act as a base for an Eulerian cradle when combined with a CGO-60.5 stage. All piezoelectric ...

A cryogenic rotation stage which dimensions perfectly match multi-axis SLC-24 positioning systems. The SR-2812-CR is specifically designed for use at cryogenic temperatures. Its external dimensions ...

Stroke : 1 mm - 40 mm
Speed: 1 mm/s - 200 mm/s
Repeatability: 0.3 µm - 5 µm

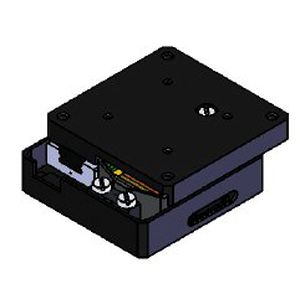

LA92 High Speed UHV Linear Axis Application: High resolution and fast scanning applications Benefit: Fast positioning in UHV, also vertically Features: Outstanding resolution, very slim, with internal motor • ...

Stroke : 1 mm - 130 mm
Speed: 1 mm/s - 10 mm/s
Repeatability: 0.4 µm - 5 µm

LA170 Precise high load XYZ linear axis Application: Transport Stage, scanning stage for high loads Benefit: High life time despite dry lube Features: lead screw with dry lube or ball screw with ...

Stroke : 1 mm - 100 mm
Speed: 1 mm/s - 10 mm/s
Repeatability: 0.4 µm - 5 µm

LT300 Precise high load linear stage Application: Transport Stage, scanning stage for high loads Benefit: High life time despite dry lube Features: lead screw with dry lube or ...

Stroke : 100, 200, 300 mm
Speed: 500 m/s
Repeatability: 0.3 µm

... precision Integrated combination XYZ Axis stage) Next: HEX-S6.50.200 6-Axis Hexapod Tri-pod structer Parallel six degrees of freedom stages High Precision Linear Motor Stage High ...

Speed: 300 mm/s
Load: 2 kg

... Large travel hollow linear motor stage Next: EC-ABL140-X series (economical magnetic preload series) Ultra-thin one-dimensional air flotation motion stage Linear motor delay stage Ultra-fast ...

Speed: 10 mm/s
Load: 5 kg

Features: ·Stepping motor and RS232 interface, the company’s self-developed column motion controller can realize automatic control. ·The rotating shaft system is precisely processed by multi-channel technology, with high ...

Stroke : 0 mm - 1,500 mm
Speed: 2.2, 5, 4 m/s

Multiple axis combinations Our multiple axis combinations allow cartesian movements in at least two directions. Multiple axis combinations usually are faster and lighter than conventionally combined axes.

... units LES 5, which are interconnected at right angles. The individual axes are driven by servo motor with a recirculating ball drive of 10 mm pitch. To achieve very high load-bearing capabilities, each axis is fitted ...

Low-backlash toothed belt drive with stepper or servo motor Reduction ratio 1 : 24 (standard) Weight: 14.6 kg FEATURES Low-backlash toothed belt drive with stepper or servo motor Ratio ratio 1 : 24 (standard) Weight: 14.6 kg OPTIONS: Reduction ...

Stroke : 0 mm - 400 mm
Speed: 1 m/s
Load: 0.5 kg - 60 kg

Table for manual using or outside motorization Guided on ball bushings Options : Hydraulic shock absorbers Elastic absorbers Position clamping (for manual using) Assembly in XY table Guide tables without transmission These tables ...

... rotation through the base. The rotating platform is lockable. Eleven M2-threaded holes and two positioning holes provided on the stage platform, can match the positioning pins of the ...

Motorized Rotational Stages GCD-01 provide 360°of rotation with highaccuracy and stability. This is an excellent general purpose rotator. Coarseangular position is indicated on a 360°engraved scale on ...

Stroke : 150, 50, 200 mm
Speed: 40 mm/s

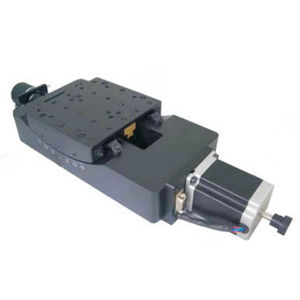

The Motorized Translation Stage GCD-10 Series uses a linear motor forload carrying and linear guide, which features with low cost and dustresistance,but low load capacity. This type of translation stages ...

Stroke : 12.5 mm

VR3 High Precision Positioning Stage Family: VR3 Model: VR3-.5-T-PL Price: $ 1,101.00

This is an example of a Lasik eye surgery application where the end user required a precise XY positioning system capable of making high speed micro positioning adjustments. Precise repeatability and ...

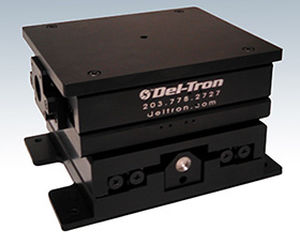

A medical testing equipment manufacturer came to Del-Tron Linear Engineering for a custom motorized XY linear stage that could provide the overall accuracy, speed and reliability necessary for DNA testing. ...

Stroke : 0 µm - 12,000 µm
Speed: 0 mm/s - 1,400 mm/s

Zaber's X-DMQ-AE Series devices are computer-controlled, direct-drive voice coil driven, linear stages with high acceleration and precision capabilities in a compact size. They are stand-alone units requiring only a standard ...

Stroke : 250, 300, 150, 200, 100 mm

Zaber's LC40B-KM Series of motorized linear guides are belt-driven recirculating ball bearing guides designed to interface seamlessly with most 40 mm T-slot extrusion framing systems and accessories. Hardened bearing ...

... closed-loop, belt-driven motorized linear stage with a built-in motor encoder and controller. With travel lengths up to 3 m, 10 µm repeatability, and a maximum speed of 2.0 m/s, X-BLQ-E stages ...

Stroke : 10 mm
Speed: 1.5 mm/s

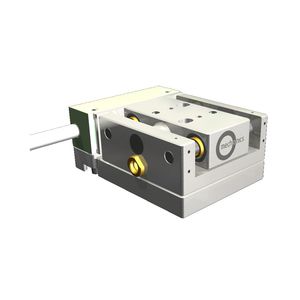

10mm travel with 22 x 15 mm footprint compact design smallest product in our portfolio Ultra small miniature translation stages with piezo electic inertial drive.

Stroke : 30 mm
Speed: 1.2 mm/s

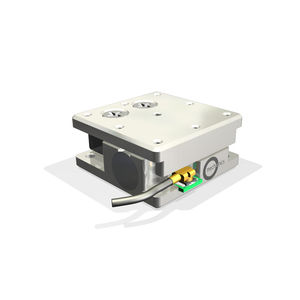

... footprint for various application fields our all-rounder multi axes combinations without adapter plates Miniature translation stage with piezo electric inertial drive.

Stroke : 8 mm
Speed: 1.2 mm/s

... operation (resolution up to 50nm) multi axes combinations without adapter plates Miniature translation stage with piezo electric inertial drive with measuring system.

Stroke : 12 mm - 320 mm

This platform is a hybrid planar mechanical/air bearing platform dedicated to step and scan applications. It is a 6 axes platform moving in X, Y, Z and Theta directions. Dynamic flatness over the full travel as well as bidirectional repeatability ...

Stroke : 25 mm
Speed: 2.9 m/s
Repeatability: 0.04 µm - 0.2 µm

... or in a tissue culture dish. Large motorized stages accomplish this, but generally make the microscope into a single-use, motorized imaging station. The form factor of motorized ...

Stroke : 22 mm
Load: 50 kg

... MT-500 X-Y manual translation table. It is designed to allow movement of a microscope’s optics with respect to the fixed stage(s). This methodology was developed by electrophysiologists recording from tissue slice preparations. ...

Stroke : 25 mm
Repeatability: 5 µm
Load: 32 kg

... 1078/MT-2078/MT-2278 systems consist of a X-Y translator and a large fixed stage. The MT-78-FS is designed for users who prefer a large platform stage for their experiments. The stage ...

Stroke : 28 mm - 5,694 mm
Speed: 9 m/s
Repeatability: 5 µm

... features a cable outlet for added versatility in its applications. Information of this linear motor stage Capacities of this linear motor stage: Measuring system repeatability: ± 0,5 μm Maximum ...

Stroke : 52 mm - 5,716 mm
Speed: 9 m/s
Repeatability: 5 µm

MLC5 linear motor stage: electromechanical actuator for automation MLC5 is a covered linear motor stage, certified for ISO3 clean room environments. It stands as the optimal choice for applications ...

Stroke : 8 mm - 3,272 mm
Speed: 9 m/s
Repeatability: 10 µm

... under demanding cleanliness and particle control conditions. Information of this linear motor stage for Cleanroom Capacities of this linear motor stage: Measuring system repeatability: ± 1 μm Maximum ...

Stroke : 3.81 cm - 26.67 cm
Repeatability: 4 µm
Load: 1.36 kg

The smallest of the motorized UniSlide Linear Stages with a body width of 1.5 inches, slider length of 1.5 inches and a carrying capacity of 3 lbs. horizontal load. The MA15 can travel up to 10.5" with ...

Stroke : 1.27 cm - 52.07 cm
Repeatability: 4 µm
Load: 6.8 kg

The MA25 Series UniSlide stage has a body width of 2.5 inches, slider length of 2.5 inches carrying a 15 lbs. horizontal load. The MA25 can travel up to 20.5" with the 2.5" slider/carriage. The MA25 Series UniSlide is ...

Stroke : 2.54 cm - 78.74 cm
Repeatability: 4 µm
Load: 45.5 kg

... thrust bearings and snap ring retainer. The lead screw drive nut is a tension adjustable nut made of Delrin providing low friction, and minimal backlash. The MA40 Series is part of 5 motorized UniSlide ...

Motorized sample XY translation stages for inverted microscopes of various manufacturers. • Rigid, stable stage design provides best performance • Powerful stick-slip piezo ...

Motorized sample XY translation stage for standalone AFM systems. - XY movement : 20 x 20 mm² - Dimensions : 300 x 300 x 40 mm³ - Weight : 6.6 kg - Compatibility : FlexAFM- and DriveAFM-specific versions

... applications and for moving small to medium loads. The compact and rigid design also maintains a permanent high degree of positioning accuracy at accelerated dynamics. The desired position can be maintained reliably only ...

... chains, cables and controls are available as plug-in accessories. The use of qualified, standardized and tested servo and motion controllers allows multiple axis solutions for virtually limitless applications.

This KML customized LinearMotorSystem was designed for maximum complex Pick and Place tasks, with which movements are necessary in three axles. The main requirements of the customer were: compact dimensions high dynamics to achieve short ...
