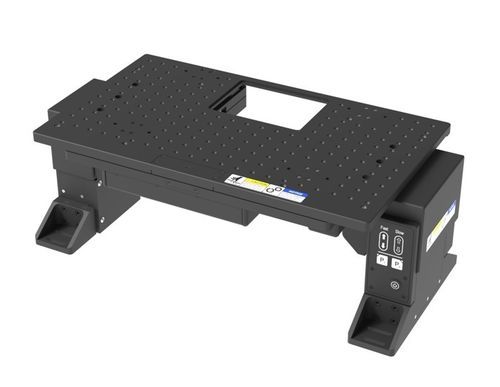

Z-axis positioning stage MALiSverticalmotorized1-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- Z-axis, vertical
- Type
- motorized
- Number of axes
- 1-axis
- Other characteristics
- measurement, high-precision, with integrated controller, for microscopes
- Stroke
Min.: 0 mm
(0 in)Max.: 100,000 mm
(3,937.008 in)- Load
Min.: 0 g
(0 oz)Max.: 30,000 g
(1,058.22 oz)
Description
Overview
Applications
Key features
Technical specifications
- Motorized Z-stage designed for microscope platforms in reflected and transmitted light applications.
- Provides synchronized, high-precision Z motion with integrated optical measurement across all axes.
Applications
- Reflected and transmitted-light microscopy
- Automated inspection and imaging systems
- Research and industrial microscopy setups
Key features
- Synchronized, high-precision Z travel via integrated optical measurement systems in all axes
- Configurable presets to reach predefined Z positions at the push of a button
- Integrated TANGO integrale controller enabling standalone Z operation via joystick or control panel
- Load capacity up to 30 kg
Technical specifications
- Article number: 00-1547-0405-0000
- Model name: MALiS
- Suitable for reflected and transmitted light microscopy
- Z motion: synchronized, high-precision, with integrated optical measurement in all axes
- Control: integrated TANGO integrale; operation via joystick or control panel; configurable presets
- Maximum load: up to 30 kg
