Linear positioning stage FSK40IS-DV

XYZmotorizedlinear motor-driven

Short Description:

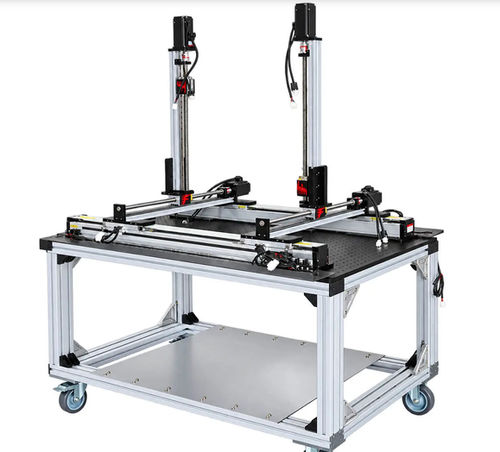

This dual-gantry 3-axis test platform for university labs features an X-axis linear motor and Y/Z FSK40 ball screw modules. Zero-backlash scanning, rigid positioning and a modular optical breadboard design support dual-probe comparative tests for material characterization, NDT and field mapping. Custom stroke: X-axis 600 mm, Y-axis 500 mm, Z-axis 500 mm. Repeat positioning accuracy: ±0.02 mm.

Product details:

• Series: FSK40IS-DV
• Stroke Range: 50mm-1000mm
• Position Accuracy: 0.03mm
• Max Speed: 255mm/s
• Max Load: 25kg
• Ball Screw options: G1204, G1605, G1610

Additional information:
Dual-gantry XYZ architecture designed for laboratory research and testing. Modular optical breadboard mounting enables flexible sensor/probe positioning and comparative dual-probe testing. System emphasizes zero-backlash scanning and rigid positioning for precise material characterization and field mapping applications.

Caractéristiques / spécifications techniques:

• Configuration: Dual-gantry 3-axis positioning stage (X linear motor; Y/Z FSK40 ball screw modules)
• Custom stroke (example): X = 600 mm; Y = 500 mm; Z = 500 mm
• Stroke range (series): 50 mm - 1000 mm
• Repeat positioning accuracy: ±0.02 mm
• Position accuracy (spec sheet): 0.03 mm
• Maximum speed: 255 mm/s
• Maximum load capacity: 25 kg
• Ball screw models supported: G1204, G1605, G1610
• Design features: Zero-backlash scanning, rigid positioning, modular optical breadboard for flexible probe mounting, supports dual-probe comparative tests (material characterization, NDT, field mapping)
• Series / Model family: FSK40IS-DV
