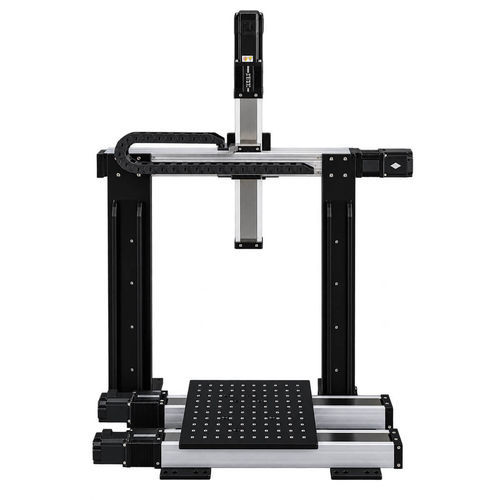

Cartesian linear gantry module FSL60IS-TP

ball screwelectricdouble

Product overview

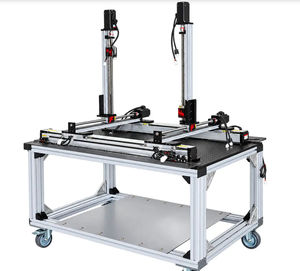

XYZ sample displacement test platform based on FUYU Technology FSL fully enclosed modules. Model FSL60IS-TP with dual X-axis drive for increased rigidity, C5 ground ball screws and encoder closed-loop servo control. Dustproof sealed design; supports multi-axis linkage and OEM customization. Supplied as a complete servo solution for precision displacement and positioning tests.

Dimensions & Accuracy

• Custom stroke example: X 400 mm, Y 550 mm, Z 300 mm
• Repeat positioning accuracy: ±0.02 mm
• Position accuracy: 0.01 mm

Key Parameters

• Series / model: FSL60IS-TP
• Stroke range (product): 50 mm – 1050 mm
• Stroke range (series): 50 mm – 12000 mm
• Max speed: 200 mm/s
• Max load: 70 kg (series range 3 kg – 180 kg)

Typical applications

• University precision tests and R&D
• Medical equipment and laboratory automation
• Electronic assembly and inspection
• Integration in automated production lines and pick-and-place systems

Technical features

• Modules: FUYU Technology FSL fully enclosed modules
• Drive: dual X-axis drive for increased rigidity
• Lead screw: C5 ground ball screws
• Control: encoder closed-loop servo system
• Environment: dustproof sealed modules
• Customization: supports multi-axis linkage and OEM builds
• Certifications (company level): CE, FCC, RoHS, TUV, ISO9001
