XYZ positioning stage FSL80IS-LT

motorizedelectricmulti-axis

Product overview

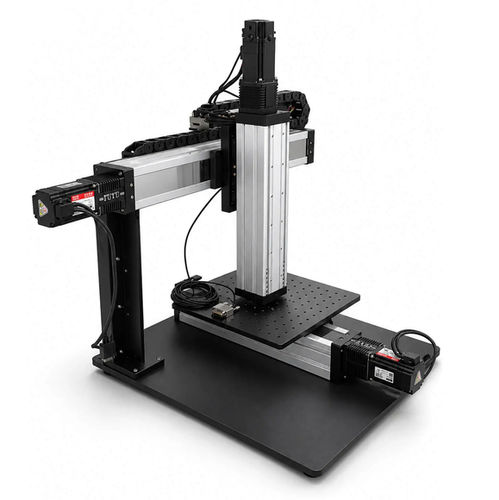

The X/Y/Z three-axis linkage provides full coverage of the workpiece for laser scanning, contour measurement and surface inspection. A double-column rigid beam ensures stable motion. The Z-axis allows fast height adjustment to fit various sensors and samples, with repeat positioning accuracy ±0.01 mm. A multi-hole base supports flexible fixturing for different workpiece sizes. Typical model stroke for this series is 50–1050 mm, maximum speed 200 mm/s and maximum load 70 kg.

Applications

• Laser scanning and contour measurement
• Surface inspection and visual quality control
• Precision measurement and sensor/tool positioning in automated lines

Manufacturer and certifications
FUYU Technology manufactures intelligent linear motion systems and offers modular platforms including ball screw actuators, belt-driven modules, XYZ positioning stages, gantry systems, servo cylinders, linear guides, electric grippers and multi-axis motion controllers for Cartesian robots. The company holds multiple patents and maintains factory certifications such as ISO9001:2015, RoHS, CE, FCC and TUV. OEM integration and customization services are available.

Technical specifications

• Series: FSL80IS-LT
• Stroke range: 50 mm – 1050 mm
• Repeat / position accuracy: ±0.01 mm (repeatability) / Position accuracy: 0.01 mm
• Maximum speed: 200 mm/s
• Maximum load capacity: 70 kg
• Structure: X/Y/Z three-axis linkage with double-column rigid beam
• Base: multi-hole base for flexible fixturing of different workpiece sizes
• Modular design: system configurable up to 12000 mm; precision and load capacity vary by configuration
