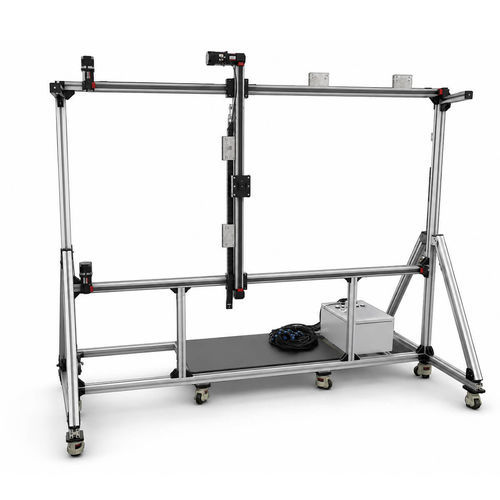

Portal positioning stage FPB45IS-VIE

linearXYZmotorized

Short Description:
FPB45 dual-shaft timing belt gantry module for motion camera shooting rigs. High-rigidity twin shafts ensure vibration-free smooth movement for clear footage. Low-noise high-speed belt drive supports flexible shot switching. Adjustable stroke with servo precise positioning, stable camera loading for dynamic product shots, short video tracking and industrial time-lapse. Easy assembly, cost-effective professional sliding shooting solution.

Key Series / Parameters:

• Series: FPB45IS-VIE
• Stroke Range: 100mm-3900mm
• Position Accuracy: 0.05mm
• Max Speed: 2000mm/s
• Max Load: 15kg

Custom Stroke Example
X-axis 1400 mm; Y-axis 1000 mm; Repeat Positioning Accuracy: ±0.02 mm

System General Parameters
Position Accuracy (mm): ±0.05
Ladder type Screw Diameter (mm): 70
Acceleration and deceleration time (S): 0.5

400W Servo motor
Horizontal - Loadings (KG): 2KG, 4KG, 6KG, 8KG, 10KG, 12KG, 14KG, 15KG; Full Speed (mm/s): 2000 for listed loads
Vertical - Loadings (KG): 2KG, 4KG, 6KG, 8KG, 10KG; Full Speed (mm/s): 2000, 2000, 2000, 2000, 1500 (respectively)
Side mounted - Loadings (KG): 2KG, 4KG, 6KG, 8KG, 10KG; Full Speed (mm/s): 2000 each
Hoisting - Loadings (KG): 2KG, 4KG, 6KG, 8KG, 10KG; Full Speed (mm/s): 2000 each

5756 Stepper motor (4A current)
Horizontal - Loadings (KG): 2KG, 4KG, 6KG, 8KG, 10KG, 12KG, 14KG, 15KG; Full Speed (mm/s): 1000, 1000, 800, 800, 600, 600, 500, 500 (respectively)
Hoisting - Loadings (KG): 2KG, 4KG, 6KG, 8KG, 10KG; Full Speed (mm/s): 1000, 800, 800, 600, 400 (respectively)
Side mounted - Loadings (KG): 2KG, 4KG, 6KG, 8KG, 10KG; Full Speed (mm/s): 1000, 800, 800, 600, 400 (respectively)
Vertical - Loadings (KG): 1KG, 2KG, 3KG; Full Speed (mm/s): 800, 600, 300 (respectively)

Noise level: ≤65 dB

Applications & Functionality
Designed for visual inspection equipment and motion camera rigs: stable camera loading, precise repeatable positioning for tracking, short video capture, industrial time-lapse and flexible shot switching. Modular belt-driven gantry suitable for easy assembly and integration into multi-axis systems.

Caractéristiques / Spécifications techniques

• Series / Model: FPB45IS-VIE
• Model family: FPB45 dual-shaft timing belt gantry module
• Stroke range: 100 mm – 3900 mm
• Custom stroke example: X = 1400 mm; Y = 1000 mm
• Repeat positioning accuracy (example): ±0.02 mm
• Position accuracy (system): ±0.05 mm
• Maximum speed: up to 2000 mm/s (depending on motor and load)
• Maximum load: 15 kg
• Drive options: belt-driven with options for 400W servo motor or 5756 stepper motor (4A)
• 400W servo motor performance: full speeds up to 2000 mm/s for many load conditions
• Stepper motor performance (5756, 4A): reduced full speeds depending on load (see motor table above)
• Ladder type screw diameter: 70 mm
• Acceleration / deceleration time: 0.5 s
• Noise: ≤65 dB
• Typical uses: camera motion rigs, visual inspection, dynamic product shots, multi-axis positioning systems
