XYZ positioning stage FSK40IS-DL

motorizedlinear motor-driven3-axis

Product overview

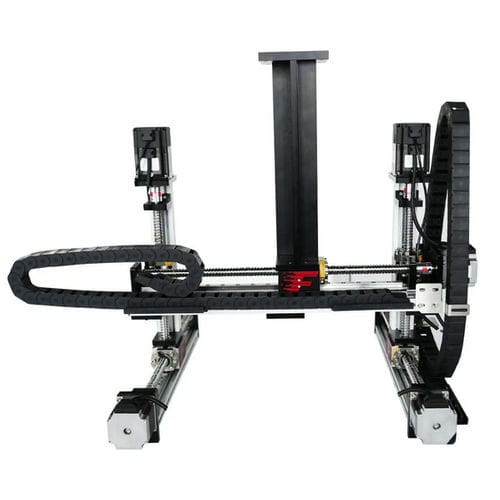

Motorized multi-axis XYZ positioning stage FSK40IS-DL, designed for precise point-to-point handling, positioning, inspection and dispensing tasks. Effective travel: X 200 mm, Y 200 mm, Z 150 mm.

Main application scenarios

• Handling and transfer: point-to-point handling of small parts and material transfer on production lines.
• Positioning and assembly: precise positioning and automated assembly for electronics and small appliance manufacturing.
• Inspection and measurement: base motion platform for vision inspection systems and sensor probes.
• Dispensing and coating: dispensing, sealing or coating operations with simple tool paths.

Key product information

• Series / model: FSK40IS-DL
• Effective travel (listed): X 200 mm, Y 200 mm, Z 150 mm
• Stroke range (module options): 50 mm – 1000 mm (systems can be composed up to 12 000 mm)
• Position accuracy (typical): 0.03 mm (range 0.02–0.2 mm depending on configuration)
• Maximum speed: up to 255 mm/s
• Typical maximum load: 25 kg (configurable 3–180 kg)
• Drive options: ball screw (G1204 / G1605 / G1610), belt drive, linear motor

Brand and capabilities

• Manufacturer: FUYU — specialized in intelligent linear motion systems and multi-axis positioning solutions.
• Product range: ball‑screw actuators, belt‑driven modules, linear motor modules, XY/XYZ tables, gantry systems and multi-axis controllers.
• Customization: OEM orders, system composition and motion programming services available.

Certifications & technical specifications

• Typical certifications: CE, FCC, RoHS, IP65/IP66, TUV, ISO9001
• Ball screw types: G1204, G1605, G1610
• Stroke options, accuracy and load vary by configuration — contact manufacturer for detailed CAD, performance data and integration support.

Additional resources
Technical documents, CAD libraries, demonstration videos and factory solution presentations available from the manufacturer to support integration and validation.
