Our customer is a manufacturer of production line machinery and equipment, and its products are mainly used for surface grinding, deburring, etc.
The application in metal grinding equipment requires a closed module that is dust-proof and corrosion-resistant. This model selection FSL120 has a repeat positioning accuracy of ±0.02mm, a maximum speed of 500mm/s, a maximum horizontal load of 100KG, and a vertical maximum load of 50KG. Precision aluminum base, high rigidity for large loads. It has the advantages of high precision, accurate positioning and corrosion resistance.

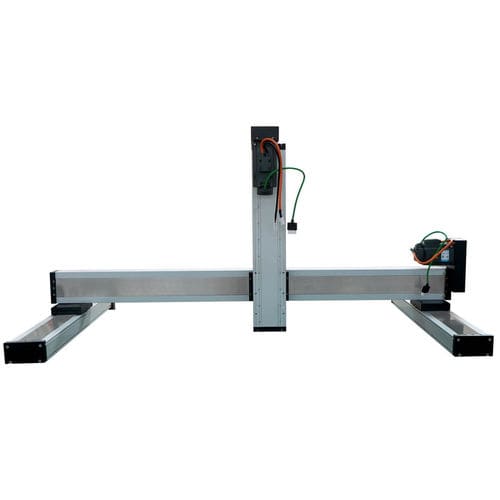

FSL120XYZ-L is a gantry structure module tailored by Fuyu Technology according to the actual application scenarios of the project and customer needs.
The structure is simple, and the closed module is dust-proof and corrosion-resistant.
The effective travel of X axis is 600mm
The effective travel of the Y axis is 850mm
The effective travel of Z axis is 600mm
Series: FSL120IS-SL
Stroke Range: 50mm-1500mm
Position Accuracy: 0.02mm
Max Speed: 500mm/s
Max Load: 100kg
Ball Screw: G1610/G2020
