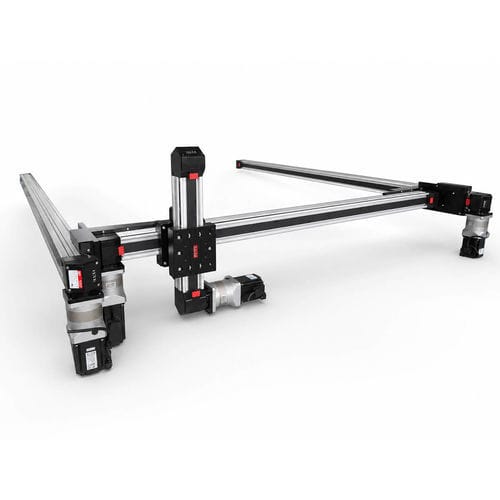

Double linear gantry module FPB80IS-VM

Cartesian

Short description
FUYU Motion customized FPB80 dual-shaft belt linear module for vertical lifting of pizza vending machines. Max horizontal load 80kg, no-load speed 3000mm/s. Optimized reducer enables stable vertical operation at 400mm/s with 10kg rated load, faster response and higher serving efficiency. High-rigidity dual shafts deliver stable tray lifting without tilting, preventing food sliding or tipping. Custom Stroke: X-axis 2100 mm, Y-axis 200 mm, Z-axis 1600 mm. Repeat Positioning Accuracy: ±0.02 mm.

Key product information

• Series: FPB80IS-VM
• Stroke Range: 100mm-3900mm
• Position Accuracy: 0.05mm
• Max Speed: 3000mm/s
• Max Load: 80kg

Additional product details from page

• Product type: Dual-shaft belt driven linear module customized for vending/pizza machine vertical lifting
• Max horizontal load (specified): 80kg
• No-load speed (specified): 3000mm/s
• Optimized reducer for stable vertical operation: stable at 400mm/s with 10kg rated load
• High-rigidity dual shafts to prevent tray tilting and food sliding/tipping
• Custom stroke example provided: X 2100 mm, Y 200 mm, Z 1600 mm
• Repeat Positioning Accuracy (example): ±0.02 mm

Caractéristiques / spécifications techniques

• Series: FPB80IS-VM
• Model: FPB80 dual-shaft belt linear module (vertical lifting for vending machines)
• Stroke range: 100 mm - 3900 mm
• Custom stroke example: X-axis 2100 mm; Y-axis 200 mm; Z-axis 1600 mm
• Position Accuracy (listed): 0.05 mm
• Repeat Positioning Accuracy (listed): ±0.02 mm
• Max speed / no-load speed: 3000 mm/s
• Stable vertical operation example: 400 mm/s at 10 kg rated load (with optimized reducer)
• Max load / Max horizontal load: 80 kg
• Design feature: High-rigidity dual shafts for stable tray lifting without tilting
