Ball screw linear gantry module FSK30IS-LX

Cartesian

Short Description

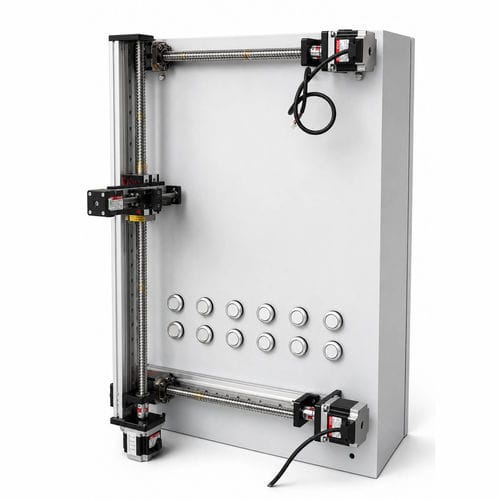

Three-axis gantry motion drives the test probe to accurately reach buttons and test points on control cabinets for automatic pressing, functional verification and cyclic testing. The modular design enables flexible customization of strokes, layouts and mounting interfaces to improve inspection throughput and repeatability.

Key Features

• 3-axis gantry with ball-screw actuators for precise probe positioning
• Modular, configurable architecture for custom stroke and layout requirements
• Engineered for automatic button pressing, functional verification and repetitive test cycles
• High repeatability (±0.02 mm) and configurable speed up to 300 mm/s depending on setup

Standard / Example Specifications

• Model / Series: FSK30IS-LX
• Drive type: Trapezoidal lead screw (ball-screw variants available)
• Example stroke: X 700 mm / Y 500 mm / Z 50 mm
• Stroke range (family): 50 mm – 12 000 mm
• Repeat positioning accuracy: ±0.02 mm
• Position accuracy: 0.02 mm
• Max speed: 300 mm/s
• Max load (example): 3 kg; family range 3–180 kg

Additional Product Details
Multi-module configurations allow extended travel or additional axes. Suitable for inspection and test stations in electronics, fire control panels and industrial cabinets. Optional controllers and mounting kits are available for integration with automated test systems.

Technical specifications

• Configuration: 3-axis (X, Y, Z) gantry positioning table
• Series / Model: FSK30IS-LX
• Drive mechanism: Trapezoidal lead screw / ball-screw options
• Customization: strokes, layouts, load capacities and control interfaces configurable
• Typical applications: automated pressing, functional and cyclic testing of control cabinets, PCB inspection and assembly line integration
