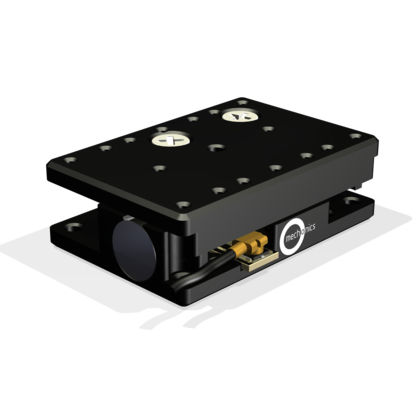

Linear positioning stage MS15motorizedpiezosingle-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- motorized, piezo
- Number of axes
- single-axis
- Other characteristics
- compact, miniature
- Stroke
10 mm
(0.394 in)- Speed
1.5 mm/s
- Load
20 g
(0.71 oz)
Description
compact design smallest
product in our portfolio
Ultra small miniature translation stages with piezo electic inertial drive.
Technical data
Width - 22 mm
Height - 7 mm
Depth - 15 mm
Max. load
Momentum (Mx) - 4.5 Ncm
Momentum (My) - 1.5 Ncm
Momentum (Mz) - 3.2 Ncm
Blocking force (Fx) - 3 N
Bearing force (Fy, Fz) - 20 N
Guidance accuracy
Yaw angle - 20 arc sec
Pitch angle - 60 arc sec
Vertical deviation - 1 um
Lateral deviation - 2 um
