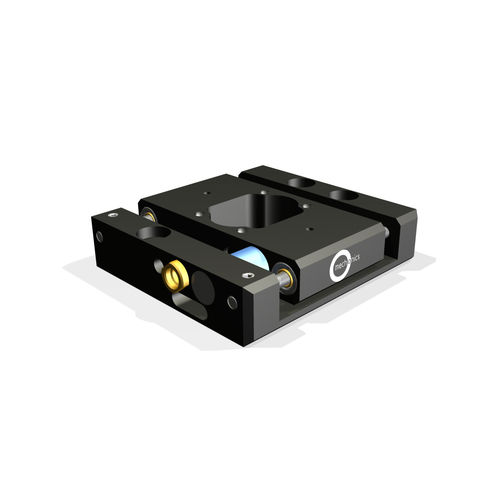

Translation stage MS38piezoelectricminiature
Add to favorites
Compare this product
Characteristics
- Orientation
- translation
- Type
- piezoelectric
- Other characteristics
- miniature
- Stroke
8 mm
(0.315 in)- Speed
1.5 mm/s
Description
free aperture of 10 mm for ray passage
special design for optical systems
Miniature translastion stages with free opening dia 10mm and piezo electrical inertial drive.
Technical data
Width - 38 mm
Height - 9.5 mm
Depth - 40 mm
Velocity - 1.5 mm/s
Max. load
Momentum (Mx) - 4 Ncm
Momentum (My) - 4 Ncm
Momentum (Mz) - 4 Ncm
Blocking force (Fx) - 4.5 N
Bearing force (Fy, Fz) - 20 N
Guidance accuracy
Yaw angle - 20 arc sec
Pitch angle - 60 arc sec
Vertical deviation - 1 um
Lateral deviation - 2 um
