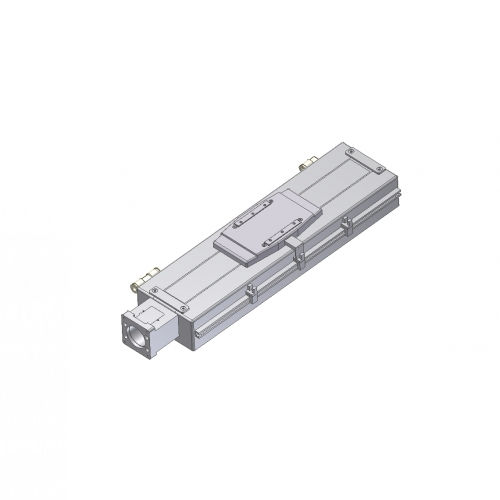

Linear actuator BSMA-115CR
electricball screwstepper

linear actuator
linear actuator
Add to favorites
Compare this product

Go to the IntelLiDrives, Inc. website for more information

Characteristics

Movement
linear
Type
electric
Technology
stepper, ball screw
Material
stainless steel
Protection class
sealed
Applications
industrial
Other characteristics
standard, vacuum
Stroke

Max.: 1,000 mm
(39.37 in)

Min.: 100 mm
(3.937 in)

Speed

200 mm/s, 500 mm/s

Description

Clean Room rating is achieved through a sealed structure and high durability stainless steel strip cover. The actuator body is electro-less plated for corrosion resistance. Actuator has vacuum suctions ports to exhaust any particles generated by the moving parts. These linear actuators confirm to 209E clean room classification and Class 10 VDI 2083-8 standard. Stroke: mm 100 - 1,000 Ball screw lead: mm 20 Motor mounts size:   Nema23, M60 Motor type :   Stepper Servo/encoder 4000ppr Repeatability: micron ± 5 Accuracy : micron/mm 20 / 300 Load kg : 100 Speed : mm/sec 200 (stepper) 500 (servo)
