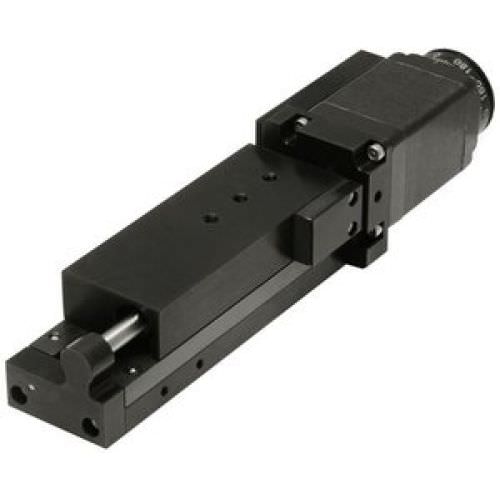

Linear actuator LSMA-30

electricstepperball screw

LSMA miniature linear actuators designed for the space confined applications while retaining the high reliability required in production environments. It is an ideal choice for measurement, testing, alignment and component assembly in any application on the factory floor or laboratory environments. The precision ball screw or micrometer grade lead screw provide excellent accuracy and repeatability with ultra-fine positioning resolution capability of 0.1 micron when driven by the stepper motor. The servomotor version is equipped with a rotary encoder and provides exceptionally smooth travel. XY and XYZ configurations available Stroke mm: 50 Screw lead mm: 0.25 Motor mounts size:   Nema11, Nema17 Motor type :   Stepper (standard) Servo/encoder 1000 cpr Load horizontal / vertical kg: 5 / 3 Repeatability micron: 1 Stage weight kg: 0.5 Speed mm/sec: 3 (stepper) 6 (servo)
