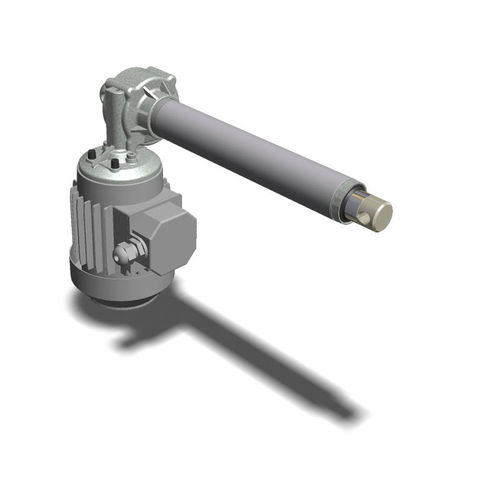

Electric actuator ALI3 serieslinearworm gearsteel
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- worm gear
- Material
- steel
- Motor
- DC, AC, permanent magnet
- Protection class
- IP65, IP55
- Applications
- for process automation, industrial, for medical applications, for the automotive industry, for bed adjustment, for ventilation systems, for lifting, for solar trackers, for robots, test, for sliding gates, for hospital beds, brake, linear for mechanical testing, for materials handling, for lifting applications, food, for construction equipment, damper, guide, for furniture, for OEM, for agricultural machinery, for mobile machines, for harsh environments, for vehicles
- Other characteristics
- precision, standard, custom
- Stroke
350 mm
(13.78 in)- Force
Min.: 2.6 kN
Max.: 6 kN
- Motor power
60 W, 90 W
(0.08 hp, 0.12 hp)- Speed
Min.: 2.5 mm/s
Max.: 35 mm/s
- Operating Temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)
Description
Three phase or single phase motor
Acme lead screw or ballscrew
Chrome plated steel push rod
Permanent grease lubrication
IP 65, tested according to rule CEI EN 60529
Intermittent duty S3 30% (5 min) a 30° C
Limit switches, potentiometer and encoder on request
