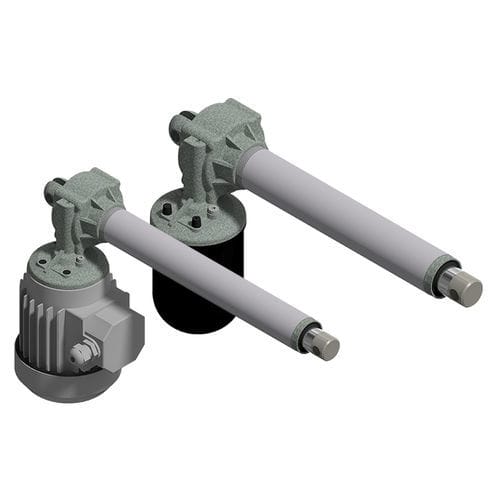

Electric cylinder ALI3ball screwlead screwworm gear
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- ball screw, lead screw, worm gear
- Motor
- DC, permanent magnet
- Voltage
- 24 V, 12 V
- Protection class
- IP65
- Applications
- for medical applications, industrial, food, for lifting, guide, chemistry, for construction equipment, for ventilation systems, propeller, control, for OEM, for agricultural machinery, for die-casting applications, for furniture, for solar panels, brake, linear for mechanical testing, steering, for the electronics industry, handling, for photovoltaic applications, for robots
- Other characteristics
- motorized, with potentiometer
- Force
Max.: 6,000 N
Min.: 2,600 N
- Motor power
90 W
(0.12 hp)- Speed
Max.: 35 mm/s
Min.: 2.5 mm/s
- Operating Temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
Permanent magnet motor CE
Worm gearbox
Acme lead screw
Chrome plated steel push rod
Permanent grease lubrication
IP 65
Working temperature range -10°C +60°C
Intermittent duty S3 30% (5 min) 30°C*
Limit switches, potentiometer and encoder on request
