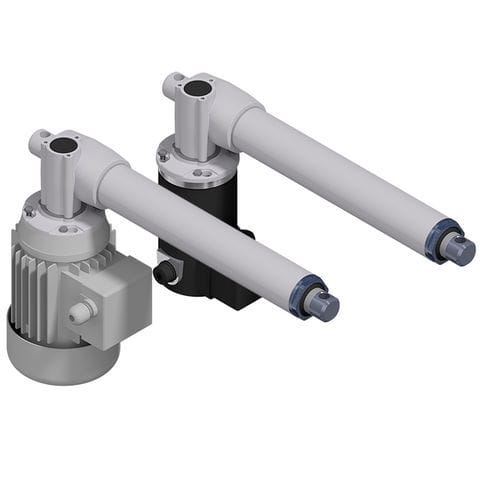

Electric cylinder ALI4ball screwlead screwworm gear
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- ball screw, lead screw, worm gear
- Motor
- DC, permanent magnet
- Protection class
- IP54, IP65
- Applications
- industrial
- Other characteristics
- standard, custom, motorized
- Force
Min.: 600 N
Max.: 10,000 N
- Motor power
Min.: 90 W
(0.12 hp)Max.: 550 W
(0.75 hp)- Speed
Min.: 3 mm/s
Max.: 100 mm/s
- Operating Temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)
Description
Permanent magnet motor
Acme lead screw or ballscrew
Chrome plated steel push rod
Permanent grease lubrication
IP 65, tested according to rule CEI EN 60529 – NB: only for brake motors standard IP 54, IP 65 on request
Intermittent duty S3 30% (5 min) a 30° C
Limit switches, potentiometer and encoder on request
