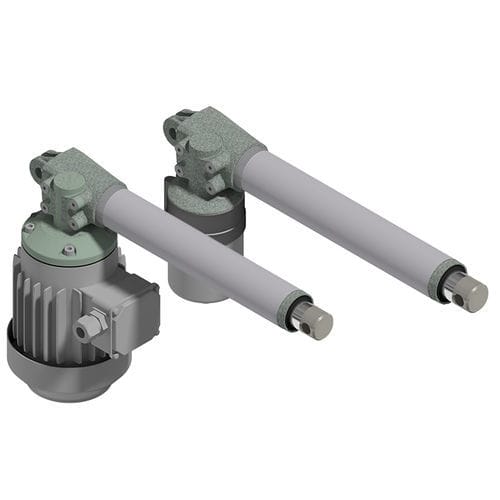

Electric actuator ALI2linearball screwworm gear
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- ball screw, lead screw, worm gear, with piston rod
- Material
- steel
- Motor
- AC
- Protection class
- IP65, IP55, ATEX
- Applications
- grease
- Other characteristics
- with integrated limit switch, with integrated displacement encoder, with potentiometer
- Stroke
320 mm, 350 mm
(12.598 in, 13.78 in)- Force
Min.: 450 N
Max.: 2,500 N
- Motor power
60 W, 90 W
(0.08 hp, 0.12 hp)- Speed
Min.: 5 mm/s
Max.: 110 mm/s
- Operating Temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)
Description
AC motor single-phase or three-phase
Worm gearbox
Acme lead screw or ballscrew
Chrome plated steel push rod
Permanent grease lubrication
IP 65, tested according to rule CEI EN 60529 – NB: only for brake motors standard IP 54, IP 65 on request
Intermittent duty S3 30% (5 min) a 30° C
Limit switches, potentiometer and encoder on request
ATEX II 3 D T4 version (AC motor) on request
