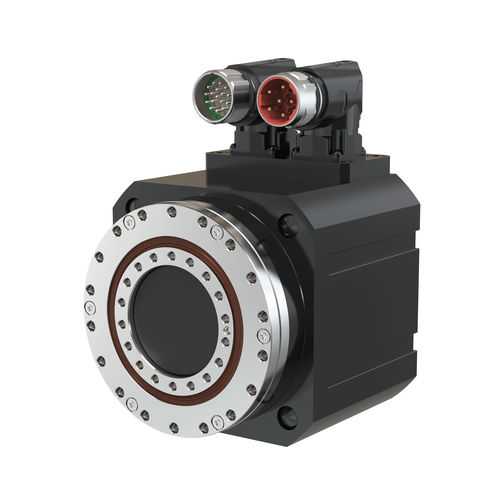

Standard actuator DriveSpin® DS series
rotaryelectricservo-motor

standard actuator
standard actuator
standard actuator
Add to favorites
Compare this product


Characteristics

Movement
rotary
Type
electric
Technology
servo-motor
Motor
AC
Voltage
230 V, 48 V, 24 V
Norms
ISO
Protection class
IP66, IP65, IP67, ATEX
Applications
for medical applications, for the automotive industry, control, index, for robots, for machine tools, for demanding applications, for OEM, for harsh environments, for process automation, for agricultural machinery, food, for welding applications, for solar trackers, for materials handling, for harsh environments, test, for mobile applications, for semiconductors, antenna, for clean rooms
Other characteristics
high load capacity, standard, compact, flat, with integrated electronics, with brake, stiffness, precision, positioning, mechanical, zero-backlash, with integrated displacement encoder, preloaded, rotary-linear, with integrated position sensor, vacuum-compatible, low-temperature, small-size, multi-axis, high-performance, lightweight, custom, low-friction, digital, high-torque, fast response time, flange, small, high-resistance, hollow-shaft, flange-mounted, high-force, multi-turn, with integrated controller, 0-90° swivel angle, CAN Bus, single-axis, in-line, bending, position-sensing, pick-and-place
Torque

Max.: 1,150 Nm
(848.196 ft.lb)

Min.: 18 Nm
(13.276 ft.lb)

Ambient temperature

Max.: 60 °C
(140 °F)

Min.: -40 °C
(-40 °F)

Description

The DriveSpin® DS electric rotary actuators, as the basic type of actuators, provide rotary motion and the transfer of output torque with a high radial-axial load capacity and are the most accurate and precise solution in their category. The DS actuators are characterized by high dynamics, highly flexible drive solution, guaranteed by an AC servomotor, and high robustness and overload capacity their reduction gears. The voltage and feedback variability will satisfy customer requirements of top performances as torque, stiffness and precision. Actuators are optimized for use with the application inverter or the multi-axis servo inverter in combination with the controller. Rated output torque is from 18 Nm to 268 Nm.
