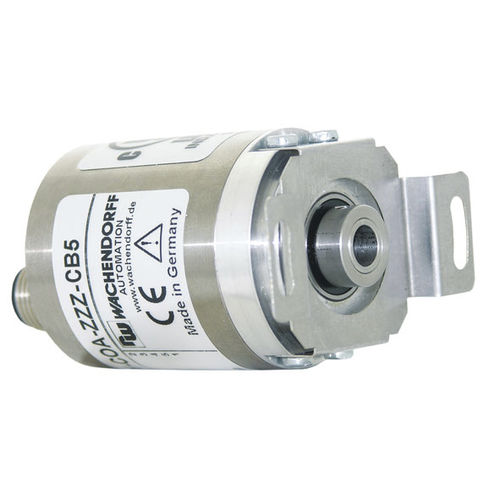

Absolute rotary encoder WDGA 36E

magnetic16-bit32-bit

Absolute hollow bore (blind) encoder, magnetic, SSI WDGA 36E 16/43-bit Single-turn/Multi-turn; binary or gray code Highlights • EnDra multiturn technology: maintenance-free and environmentally friendly • Compact industrial model • Interface: SSI (Synchronous-serial Interface) • Code: Binary- or Gray • Preset input • Direction of counting changeable • Status indicator LED • EMC: EN 61000-6-2, EN 61000-6-3 Product details Flange hollow shaft (blind-bored) steel case chrome-plated, magnetic shielding Resolution Single-turn Resolution up to 65,536 steps/360° (16 bit) Multi-turn Resolution up to 43 bit. Insertion depth min.: 8 mm Insertion depth max.: 17 mm Max. Permissible shaft loading radial: 80 N Max. Permissible shaft loading axial: 50 N Insertion depth min.: 8 mm Insertion depth max.: 17 mm Max. Permissible shaft loading radial: 80 N Max. Permissible shaft loading axial: 50 N Power supply 10 VDC up to 32 VDC Current consumption: typ. 50 mA Power consumption: max. 0.5 W Current consumption: typ. 80 mA Power consumption: max. 0.44 W Protection class Housing: IP65, IP67; shaft sealed: IP65; cable outlet K1: IP40, K6: IP20
