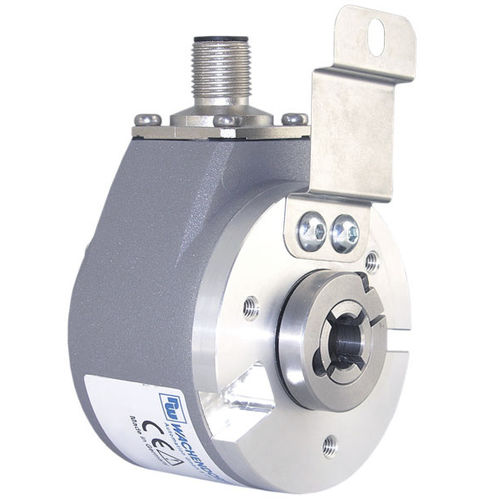

Absolute rotary encoder WDGA 58E

magnetic16-bit32-bit

Absolute encoder, magnetic, SSI WDGA 58E hollow shaft (blind); 16/43-bit Single-turn/Multi-turn; binary or gray code Highlights • EnDra multiturn technology: maintenance-free and environmentally friendly • Compact industrial model • Interface: SSI (Synchronous-serial Interface) • Code: Binary- or Gray • Preset input • Direction of counting changeable • EMC: EN 61000-6-2, EN 61000-6-3 Product details Flange hollow shaft (blind-bored) Aluminum die cast, powder coated; Integrated magnetic shielding Resolution Single-turn Resolution Multi-turn Resolution up to 43 bit. Advice: with adapter sleeve Insertion depth min.: 11 mm Insertion depth max.: 15 mm Max. Permissible shaft loading radial: 80 N Max. Permissible shaft loading axial: 50 N Advice: with adapter sleeve Insertion depth min.: 11 mm Insertion depth max.: 15 mm Max. Permissible shaft loading radial: 80 N Max. Permissible shaft loading axial: 50 N Advice: with adapter sleeve Insertion depth min.: 11 mm Insertion depth max.: 15 mm Max. Permissible shaft loading radial: 80 N Max. Permissible shaft loading axial: 50 N Advice: with adapter sleeve Insertion depth min.: 11 mm Insertion depth max.: 15 mm Max. Permissible shaft loading radial: 80 N Max. Permissible shaft loading axial: 50 N
