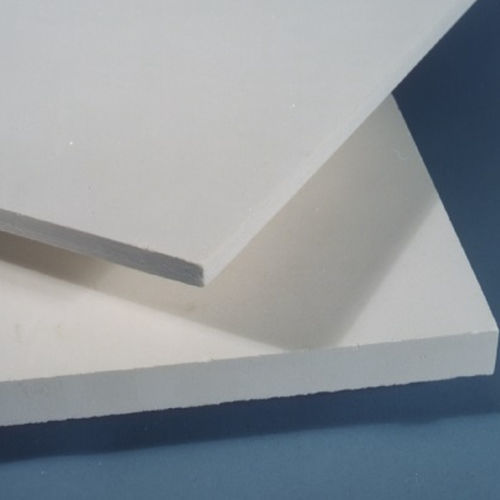

ZIRCAR Refractory Sheet Type RSLE-57 is a low expansion high strength reinforced silica matrix composite . This remarkable material was designed for use as a high strength insulator in induction hot press applications.
RSLE-57’s very low thermal expansion coefficient and high hot strength combine to give it thermal shock resistance not found in other structural ceramic matrix composite materials.
RSLE-57’s exhibits a very low coefficient of expansion 0.3 x 10-6 °C which provides remarkable resistance to the thermal shock up to 1200°C (2192°F)* in an oxidizing atmosphere and permits its use with rapid variation in temperature in that zone. Beyond 1200°C (2192°F) it transforms into a crystalline structure and becomes brittle. If the exceeded temperature is only localized, the material still retains its original high strength properties.
RSLE-57 also exhibits exceptional non-wetting properties when used in contact with molten aluminum making it useful in numerous molten aluminum contact applications.
RSLE-57 is 100% organic free and contains no refractory ceramic fiber. It is readily machined to precision tolerances with conventional tooling.
ZIRCAR Refractory Composites, Inc. (ZRCI) has developed a new material for the production of diamond segments that is far superior to all other high temperature, high pressure insulation. It has proven to be the best insulation material for Dr. Fritsch as well as other diamond segment sintering machines.
ZIRCAR Refractory Sheet Type RSLE-57 is an integral part of the production of hot pressed diamond segments.
