Thermal insulating refractory material RSLE-501

silicatube

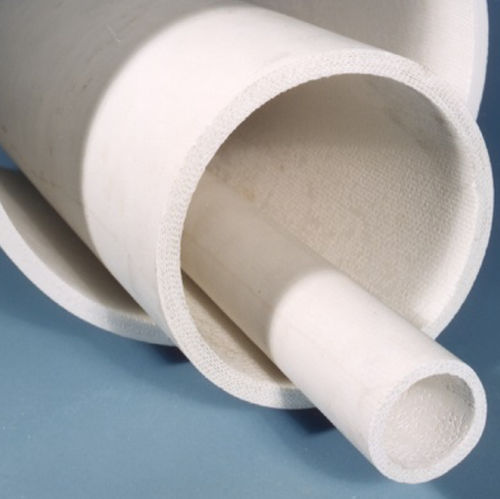

ZIRCAR Refractory Sheet Type RSLE-501 is a low expansion high strength reinforced silica matrix composites in a cylindrical form. This remarkable material was designed for use as a high strength, durable insulator in induction heat treating applications. RSLE-501’s very low thermal expansion coefficient and high hot strength combine to give it thermal shock resistance not found in other structural ceramic materials. RSLE- 501 exhibits a very low coefficient of expansion 0.3 x 10-6 °C which provides remarkable resistance to the thermal shock up to 1200°C (2192°F) in an oxidizing atmosphere and permits its use with rapid variation in temperature in that zone. Beyond 1200°C (2192°F) it will transforms into a crystalline structure. RSLE-501 also exhibits exceptional non-wetting properties when used in contact with molten aluminum making it useful in numerous molten aluminum contact applications. Unique properties of RSLE-501 are: A low thermal conductivity. An excellent electrical insulation. A high chemical purity. An excellent resistance to corrosion (from molten metal and glass) RSLE-501 is 100% organic free and contains no refractory ceramic fiber. It is readily machined to precision tolerances with conventional tooling. Composition High Hot Strength Immune to Thermal Shock Fully Machinable Non RCF
