Length: 50 mm
Width: 40 mm
... Electro zinc-plated. Note: The hinges are suitable exclusively for horizontal applications. The version with spring achieves a torque of 3.2 Nm when opening and a torque of 3.8 Nm when closing. Opening angle 110°.

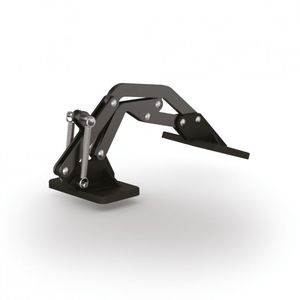

Hinge Side luggage flaps hinge Strong and Robust design Zinc_Nickel plated 504 hours salt mist approved Integrated stopping point design Special opening movement curve First little down and front ...
Length: 44 mm
Width: 29 mm
Pins and links in 430 stainless steel for 70-1-3520. Pins and links in 316L stainless steel for 70-1-3625. Mounting features: - For nested doors or surface mounted doors. - LH or RH options. - For horizontal or vertical applications. A ...
Length: 102 mm
Width: 80.5 mm
Thickness: 3 mm
Add to cart Overview Technical features CAD files Heavy duty concealed hinge. Tested to 10,000 cycles using 2 hinges with a door weight of 25 kg measuring 1 m x 1 m. Links in anodised aluminium.
Length: 60 mm
Width: 162.4 mm
For horizontal application only. Fixing plate in polymer.Spring loaded concealed hinge - 110° opening
Length: 80 mm
Width: 46.5 mm
Thickness: 12 mm
... part no. 21.1100/7 • - load capacity up to 400 N • - Weight = 0.110 kg/piece Applications • - Detachable doors, hatches, surface elements in a vertical arrangement • - If the hinges are arranged ...
Length: 67.6 mm
Width: 43.5 mm
Thickness: 13 mm
S-type S-type concealed hinge features simple and quick snap-on mounting system for easy assembly and disassembly. Adjustable damping assures perfect functioning on every door. Snap-On Mounting System S-type concealed ...
Furniture Hardware Hinge Product name:AQ868 Type: Clip on 3D hydraulic damping hinge (two-way) Opening angle: 110° Diameter of hinge cup: 35mm Scope: Cabinets, ...
Length: 84 mm

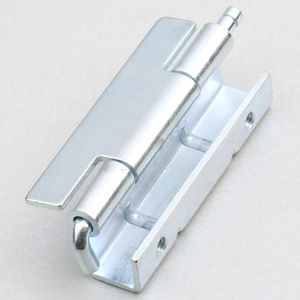

For internally mounted doors. Spring loaded hinge for easy door removal. • Both versions are either screwed-on or welded on • LH and RH application is possible
Length: 62 mm
Width: 26 mm
Material: Steel and stainless steel 304 Feature : This removable hinge can by applied on the upper and lower end of the door frame. Base seat and stand are attached.
