Crankshaft grinding machines
Power: 30 kW
... grinder. Being a hook-up-and-install machine, the crankshaft grinder PM 2 has an energy container and electrical cabinet located in the machine enclosure. The crankshaft ...
Power: 97 kW
The PM 310/320 is a crankshaft grinder which is suitable for automobiles and HGV engines. It is designed for the production of with 1000/1500 mm lengths and 80/180 kg weights. Its grinding spindle ...
Power: 0 kW - 100 kW
The PM 430/460 is a machine used for grinding large crankshafts. The corundum, or CBN, grinding wheel is used for grinding at the main and pin bearings. ...
11 interpolating CNC axis guarantee a perfect positioning of the endless abrasive belt to the work piece surface and allows the processing of complex crank shaft and work piece geometries. The two belts heads allow a two stage process.
Power: 5 ch
Spindle speed: 5 rpm - 700 rpm
Distance between centers: 500 mm
... Rexroth Controller. Diamond rotary dresser and CBN G.W. Applications include eccentric, polygon, camshaft and crankshaft parts grinding, etc. With dedicated CAD/CAM Software, users can rapidly and ...
... types of barrel finishing machines. ・Waste water is significantly reduced by means of recycle use of compound solution. Barrel Tub Capacity : 100L / 700L *APPLICATION Gears, Rotor, Turbine Blade, Steering Shaft, ...
Power: 4 kW - 7.5 kW
X travel: 410 mm - 450 mm
Y travel: 1,750 mm - 3,450 mm
NEW MODEL of crankshafts grinding machines designed for automotive rebuilding works. The machine moves the grinding head. The workpiece is clamped by ...
Power: 22 kW
Spindle speed: 0 rpm - 40 rpm
Distance between centers: 0 mm - 4,650 mm
Crankshaft Grinding Machines for Heavy duty CrankshaftsCNC software permit the machine to grind journal pins and crankpins in one setup of crankshaft. ...
Power: 44 kW
X travel: 0 mm - 1,000 mm
Spindle speed: 0 rpm - 12 rpm

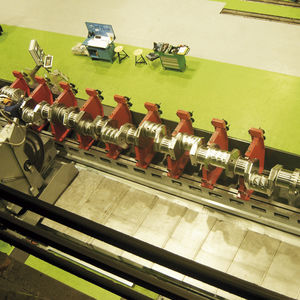

Crankshaft Grinding Machines for Heavy duty CrankshaftsDesigned to grind big size crankshafts up to 14 meters long and 25 Ton weigth. CNC software permit the machine ...
Spindle speed: 100 rpm - 1,150 rpm
Distance between centers: 1,320 mm
... worktable traverse per reversemm.11 Fast hydraulic worktable traversem. / min.3 Grinding wheel speedsr.p.m.100-1150 Max. grinding wheel diametermm.610 Min.-Max. width of grinding wheelmm.19-40 Diameter ...
... worktable traverse per reversemm.11 Fast hydraulic worktable traversem. / min.3 Grinding wheel speedsr.p.m.900-1000 Max. grinding wheel diametermm.710 Min.-Max. width of grinding wheelmm.19-50 Diameter ...
Spindle speed: 770 rpm - 940 rpm
Distance between centers: 1,800 mm
... traverse per reversemm.88 Fast hydraulic worktable traversem. / min.33 Grinding wheel speedsr.p.m.850-940770-900 Max. grinding wheel diametermm.760815 Min.-Max. width of grinding wheelmm.19-5019-60 Diameter ...
X travel: 330 mm
Spindle speed: 30 rpm - 300 rpm
Distance between centers: 1,500, 1,000, 750 mm
... high grade CNC machine tools, MKS1332 and MKS1632 CNC (end face) cylindrical grinding machines are independently developed on the basis of applying new technologies and rich experience ...

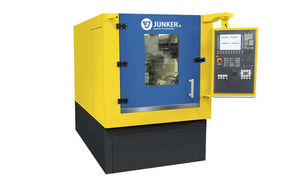

... JUCRANK non-cylindrical grinding machine accomplishes all grinding tasks on crankshafts. Maximum accuracy and quick cycle times are achieved through oscillation grinding ...
Power: 4, 5.5, 7.5 kW
Spindle speed: 15 rpm - 100 rpm
Distance between centers: 1,220, 1,600, 2,190, 2,750, 4,200 mm
... wheel balancing arbour,grinding wheel and hub, lifting hook, coolant system, splash guards, set of tools and operating manual. Extra Equipment:Belt polisher, automatic sizing gauge, electronic in-process control, extra ...
