Female pin headers

The HARTING Technology Group is expanding its portfolio for industrial device connectivity with PCB terminals and connectors. All of the products have been designed for SMT and reflow soldering processes as well as for automatic loading ...

The Pak 50 Board mount Header, 108 Series by 3M is a one of a kind product. It is designed to accommodate a variety of applications. It features a 4-Wall shroud protects pins, 80 contacts, High density ...

Direct connectors for insert cards, pitch 2.5/2.54/5.0/–5.08 mm Socket board for direct mating, with solder pins contact pitch 2.54 mm

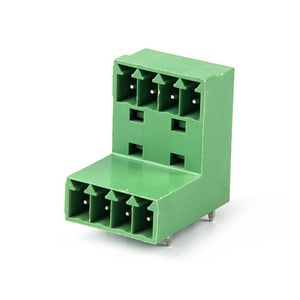

•pin header, THR solderable •centerline 5.00 mm, direction of connection 90° •closed ends •color black •Tape & Reel packaging •codeable

•pin header, THR solderable •centerline 5.00 mm, direction of connection vertical 0° •closed ends •color black •Tape & Reel packaging •codeable

High density board to board connectors 0,50 mm pitch. Different mating heights available. Gender Female Pitch (mm) 0,50 Board termination G - SMD gull wing Orientation to PCB V - Vertical No of ...

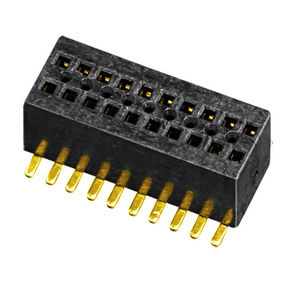

PH0.8mm Female Header H=2.6mm Dual Row U-type SMT-type with Post Board to Board Connector Specifications: Specifications: Current rating: 0.75A Insulation resistance: 1000mΩ min Dielectric withstanding ...

PH1.0mm Female Header H=2.0mm Dual Row U-type SMT-type with Post Board to Board Connector Specifications: Specifications: Current rating: 1A Insulation resistance: 1000mΩ min Dielectric withstanding ...

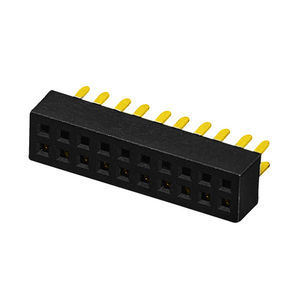

PH1.0mm Female Header H=2.0mm U-type Dual Row Straight-type Board to Board Connector Specifications: Specifications: Current rating: 1A Insulation resistance: 1000mΩ min Dielectric withstanding ...

- Position horizontal - Short, compact size - Board-to-board contacting - Tape on Reel - SMD - 2 to 12 poles available

Nicomatic latched male 90 SMT headers feature latch and molded pegs. For ease of assembly and use, they align and support the PCB tails. The unique design of these new headers allows 90 soldering on PCB. ...

1.27 to 1.778mm pitch Dual wipe contacts ensure high reliability Low costs due to selective gold plating Housing:Polysulphone (PSF), glass-filled Contacts:Beryllium Copper (BeCu) Plating:Gold over Nickel

Series MKH 2800 .Socket connectors .with crimp connection, .for pin connectors sériés MKS 2820 TECHNICAL DATA Mechanical Positions:1-8 / 11 Termination:crimp Temperature range:-40°C ... +100°C ...

... . Applications requiring lower operating temperatures can be de-rated using our current-temperature chart. •The three row female PowerMod®connectors are offered in 9, 12, 18, 24 and 30 circuit sizes. The connectors are ...

Female header SMT type 2 rows for pin square 0.30 mm Technical specifications Current rating : 1.0 A Dielectric withstanding voltage : 500 Volts AC during 1 mn Insulation resistance ...

... Rugged options Numerous contact styles Stack heights .235" (5.91 mm) - .754" (19.15 mm) Available up to 100 pins

SMT Precision Female Headers, 2.00mm Pitch, Vertical/Horizontal, 1/2 Rows Insulator Thermoplastic, rated UL94 V-0 Contact Material Sleeve: screw machined brass Clip: 4-Finger-Clip, Beryllium-Copper Contact ...
