Pneumatic brake calipers

Braking force: 153 N - 1,682 N

Their small size allows installing one or more calipers on the disc in order to obtain the desired braking torque. They are used for low and medium power braking (air applied) or for stop braking (spring applied). Is ...

Braking force: 560 N - 31,180 N

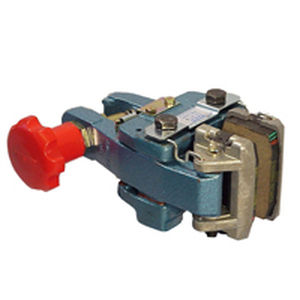

Manually or pneumatically operated calipers (air applied and spring applied), can be used to obtain high braking torque and are ideal for stop-brakes on any machine used for processing ...

Braking force: 0.51 kN - 2.75 kN

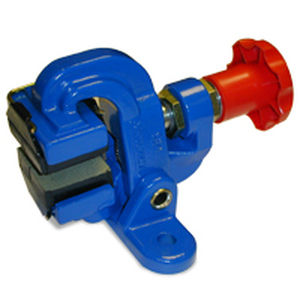

Twiflex MU Brake Calipers and Thrusters The Twiflex MU series of disc brake calipers is the smallest in the Twiflex range and is primarily intended for light stopping ...

Braking force: 0.29 kN - 2.76 kN

Twiflex MS Brake Calipers and Thrusters The Twiflex MS series of disc brake calipers is suitable for use with a disc thickness of 12.7mm. Minimum disc diameter is 250mm. Normally ...

Braking force: 0.74 kN - 10.8 kN

Twiflex MR Brake Calipers and Thrusters The Twiflex MR series of disc brake calipers is suitable for use with discs of 12.7mm or 25.4mm thick. Minimum disc diameter ...

Torque: 10 Nm - 50 Nm
Braking force: 290, 375 N

spring activated – pneumatically released Features - Code Brake Caliper - D Mounting to the machine at right angles to the brake disc - H Frame size 010 - 010 Spring activated ...

Torque: 97 Nm - 650 Nm
Braking force: 3,500, 1,700, 2,300 N

spring activated – pneumatically released Features - Code Brake Caliper - D Mounting to the machine parallel to the brake disc - V Frame size 020 - 020 Spring activated - F Pneumatically ...

Torque: 97 Nm - 650 Nm
Braking force: 3,500, 1,700, 2,300 N

spring activated – pneumatically released Features - Code Brake Caliper - D Mounting to the machine at right angles to the brake disc - H Frame size 020 - 020 Spring activated ...

Torque: 0 Nm - 150 Nm
Braking force: 500 N

Pneumatically applied spring released. The control produces the breaking effect by the adduction of air. CALIPER BRAKE PPV045 MODULAR BREAKING SYSTEM PNEUMATICALLY APPLIED

Torque: 0 Nm - 350 Nm
Braking force: 1,220 N

Pneumatically applied spring released. The control produces the breaking effect by the adduction of air. CALIPER BRAKE PPV065 MODULAR BREAKING SYSTEM PNEUMATICALLY APPLIED

Torque: 0 Nm - 80 Nm
Braking force: 400 N

CALIPER BRAKE PPC C01 PNEUMATICALLY APPLIED Pneumatically applied spring released. The control produces the breaking effect by the adduction of air.

Braking force: 190 N - 42,000 N

... range of pneumatically actuated caliper brakes allows to satisfy the most different requirements found in the field of modern machine design. The numerous mounting possibilities combined ...

Torque: 250 Nm - 5,000 Nm
Braking force: 540 N - 31,180 N

Negative brakes make it possible to satisfy the need to brake and lock the rotating parts of machines without any external energy source. In this type of product the braking force is guaranteed by the ...

Braking force: 0 N - 1,100 N

... as holding and service brakes that can have a braking force up to 33,000 N with just one caliper, depending on the air pressure. There are almost no limits to the braking torque that ...

Torque: 0 Nm - 1,200 Nm
Braking force: 5,000 N - 17,000 N

This brake caliper is designed for heavy-duty applications. The minimum diameter of the brake disc measures 560 mm, while the minimum thickness is 30 mm. Depending on the size of the ...

Torque: 70 Nm - 2,050 Nm
Braking force: 3,000 N - 8,000 N

... pneumatically released brake caliper from the R&H 200 Series is suitable for use as a holding and stopping brake. Pneumatic actuation pressure of 5 bar ...
