It was designed for WS series portable boring machine tools. It has high precision modular tool holder system to machine different diametrical ranges. KIT2000 was designed to be used on WS Sirmeccanica series for portable boring machine ...
The motorized head, fixed on a rotating axis and translating, specifically managed by WS machines, is used to perform operations or internal turning of the face (linear or nonlinear) of cylindrical tubular bodies, allowing ...
... (1,600 NM) 2 MOTORS + 2 PINIONS ON EACH AXIS CLOSED-CIRCUIT COOLING OF BEARINGS Heads JUARISTI has developed a wide range of heads for different types of milling, boring and turning ...
TCH 13 H is the most compact two-axis head with a fork structure offered by Technai Optimal price-performance-precision ratio, accepts electric spindles with a body of up to D 180mm with a torque range of 35 -: - 60 ...
Technai Team S.p.A.
... 15 H is the medium-small sized two-axis head with technical contents that reflect the state of the art and the experience of Technai in the design of Direct Drive heads The structure is fork-shaped with ...
Technai Team S.p.A.

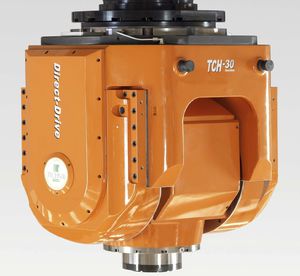

Two axis head with fork structure optimized for mold and die machining on 5-axis machines, integrated modules with Technai Direct Drive motors on both axis, available with electrospindles up to 24.000 ...
Technai Team S.p.A.
... lubrication is by long life grease. The production of our twin adjustable multispindle head was made possible thanks to the experience acquired in the construction of multispindle heads, our knowledge ...
OMG
The Henninger milling heads offer the highest precision in the machining of workpieces with narrow space conditions. Our milling heads are ideally suited ...
nMill™ is a high-speed spindle designed for micro-precision milling, drilling, and polishing. nMill™ is the perfect tool for the post-processing of virtually any Micro-Dispensed or Extruded material. 50,000 RPM motor ...
M5H M5H head with mechanical spindle unit develops high torque and integrates automatic accessories change to allow for access into narrow spaces. The dedicated reinforced Ram and multiguide system allow to the increased ...
M5A M5A milling head is built around a cast iron structure meant to deliver stiffness and thermal stability during demanding operations on steel as well as alluminum. It is a continuous bi-rotary head ...
Swivel heads of the SKU series are equipped with a worm gear drive. Select the spindle to be installed according to your machining requirements. We will design the necessary interfaces together with you ...
The SKD 35 provides 50 revolutions each minute. The unit offers a unit weight of 310 kg, and content capacity of 650 kg. It is designed with a middle bore diameter of 100 mm, and bearing size of 300 mm x 200 mm. In addition, the ...
• Extreme machining stiffness thanks to the tilting B axis that generates minimum torque on the rotating axes • Maximum coverage of the machining areas • Possibility of tilting up to -10° for machining ...
Hiteco
Machine complex parts quickly and easily: It‘s not without reason that five-axis machining is considered the elite of machining processes. Its complexity requires a great deal of competence with the utilized ...
The newly developed dynamic 2-axis milling head VH10 has only minimal interference contours due to its slim design. The fork head is designed in monobloc versions made of cast iron. Despite ...
F. Zimmermann GmbH
Max vertical load(Electric spindle) / (Tool holder): 70kg Max vertical speed (Electric spindle)/ (Tool holder): 100mm/s Max vertical acceleration (Electric spindle) / (Tool holder): 22m/s² Max vertical load / Max rotational angular ...
Hangzhou IECHO Science & Technology Company
HSD Axis Motorors. A Axis max torque: 32Nm; 80Nm C Axis stall/ Max torque C: 64Nm; 160Nm Clamping torque Axes brakes A; C: 210;342 Nm Max speed Axes A; C: 180°/sec; 180°/sec Measuring system accuracy A;C: 13 arcsec; 13 arcsec (option ...
HSD
... 15kW Support type - Single shoulder Axis ange - 90° Voltage - 380V Frame construction - Solid steel / Aluminium Tool taper - HSK F63 Cooling - Liquid cooled Certificates - CE FEM designed iron frame welded ...
Wolong Electric Group
Fork heads KW2 HS 62 Tilting head with 2 continuous axes Gear transmission with backlash reduction device Additional information Tool taper [rif] HSK A63 Plate locking force ...
EUROMA
... The lathe now functions as a compound table, with X-Y travel being longitudinally and cross-wise respectively. The mill/drill head is identical to the miller FF 250/BL. Three collets of sizes 6 - 8 and 10mm are included. ...
Spindle Unit TO 16 With automatic tool changer for cutting, routing and engraving machines for marble and granite. - Power 12 kW /16 Cv. at 4.500 RPM - Max. speed: 12.000 RPM - Water cooled - Bored shaft for water passage on ...
VEM
Advantages SMALL 2AH - Same main dimensions as our bestseller SMALL 2AK - At least 100 % more clamping torque in the C-axis - At least 100 % more maximum torque - High accuracy Secondary cooling in the C-axis reduces the ...
Franz Kessler GmbH
Tilting Head Tilting head provides flexibility for tilting the spindle to a particular angle for angular machining of the component. Features Integrated cable management system - ...
Manual 90° Milling Head Maximum Torque - 1000 - Nm Maximum RPM - 2000 - rpm Rotating Direction of Spindle - Clockwise - Tool Type - MAS 403 BT-50 - Pull Stud ...
MPA srl
Compact design for smaller routers or where space is limited. · Variable angle single output (0° – 100°). · Viso features digital display for easy angle setting. Use Vario or Viso Aggregates to cut at any angle from 0? to ...
Techniks
... roughing in ISO P and ISO M Benefits and features The flute design is optimized for maximum chip evacuation and safe machining A specific face geometry for demanding ramping operations Optimized uneven ...
Sandvik Coromant
Indexable UFO carbide milling head 3B series, the cutting edge angle and thickness are more optimized, and the classification of insert geometry is more refined. The milling head ...
YIH TROUN CUTTING TOOLS GMBH
Milling heads hold and rotate the cutting tool on special or custom-built machining centers. Multiple movement options may allow for four- or five-axis machining.
ApplicationsThese devices are suitable for all types of milling operations, whether they are horizontally or vertically mounted.
TechnologiesSuch accessories can be either continuous or indexing types. They offer two to five rotational axes for complex milling operations. The continuous type is capable of uninterrupted machining as the head axis changes. The index type first positions the milling cutter on the correct axis, then starts the milling operation. They can handle the machining of aluminum, steel, plastic, wood and stone.
How to chooseBe sure to determine the number of rotational axes, spindle speed, torque and the type of material being machined when selecting a milling head.
