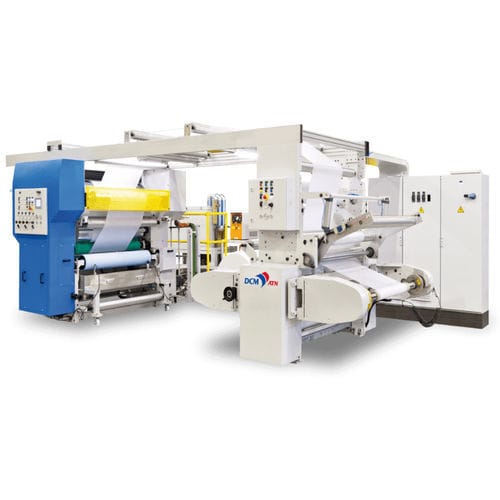

熱溶融性コーティング・パラフィン加工機 LAMINAWAX

パラフィンワックス紙用

The LAMINAWAX is designed for paraffin and hotmelt coating or wax lamination. Its modular design makes the machine adaptable to different markets. TECHNICAL DATA • Web width : from 800 to 1300mm • Coating weight : from 4 to 25g/m² • Reels diameter : from 1000 to 1500mm • Maximum production speed : 300m/min MACHINE DESCRIPTION • Semi-flexo or rotogravure coating • Pre-heat trays 450 or 900L with continuous flow to heated trays • 4 independent AC motors for the coating station • Autonomous heating system with thermofluid, up to 200°C • 3 chilling rollers with water circulation • Simple or non-stop unwind and rewind • Lamination 100%, over strip, under strip APPLICATIONS • Food and hygienic packaging • dry groceries (candies, chocolate) • chewing gum • butter, cheese • soap • yogurt cup banderole MATERIALS • Paper from 17 gr/m² • Aluminum from 7µ • OPP, PVC, PET or PS from 20µ
